AriensZero-Turn Mower

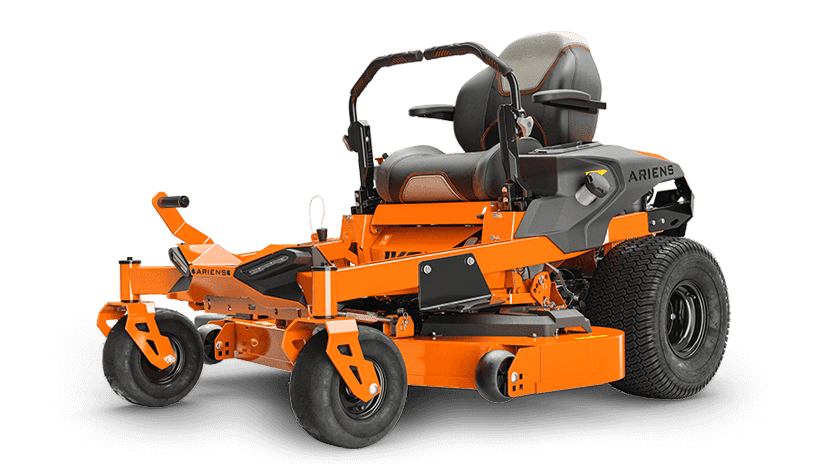

Ikon 48 Kawasaki
Ikon Series
Model 918003
Durability and power meet function and flexibility.
Manufacturer's suggested retail price
$3,899
Dealer pricing, promotions and financing vary — confirm with your dealer.
Deck Size
48 in
Engine
Kawasaki FR651V
Horsepower
21.5 hp
Engine Displacement
726 cc
Features
- High-Back Seat – Tall and wide with more back support and on a taller base. Plus, molded armrests for extra comfort.
- Powerful Engine – Kawasaki FR651V Twin 21.5 hp/726cc.
- Standard Deck Lift Assist – foot-operated to help lift the deck more easily.
- ENVY ELITE CUTTING SYSTEM Deck – 48” cutting width, 11-gauge 4 1/2” deep fabricated deck designed for optimized airflow.
Full Specifications
Cutting Deck
Coverage per Hour3.4 acres
Deck Size48 in
Number of Spindles3
Blade Tip Speed17887 ft/min
Spindle MaterialForged Aluminum
Spindle ShaftForged Steel
Deck DriveSingle Belt
Deck EngagementElectric Warner
Deck Lift SystemFoot Operated
Deck Lift Assist SpringAccessory
Spindle BearingsBall
Cutting Positions13
Cutting Height1.5–4.5 in
Drive
TransmissionHydrostatic
DriveHydro-Gear EZT Transaxles
Front Wheels11 x 6-5 in
Rear Wheels20 x 10-8 in
Ground Speed7 mph forward / 3 mph reverse
Fuel
Fuel Capacity3.5 gal
Dimensions & Weight
Length74.5 in
Width (Chute Down)61.6 in
Width (Chute Up)50.5 in
Weight662 lb
Features
Hour MeterStandard
Auxiliary PowerUSB
Floor MatAccessory
Deck Pan Storage TrayAccessory
LightsStandard
Seat IsolationAccessory
Warranty
Warranty3 Years or 300 Hours
Engine
EngineKawasaki FR651V
Horsepower21.5 hp
Engine Displacement726 cc
