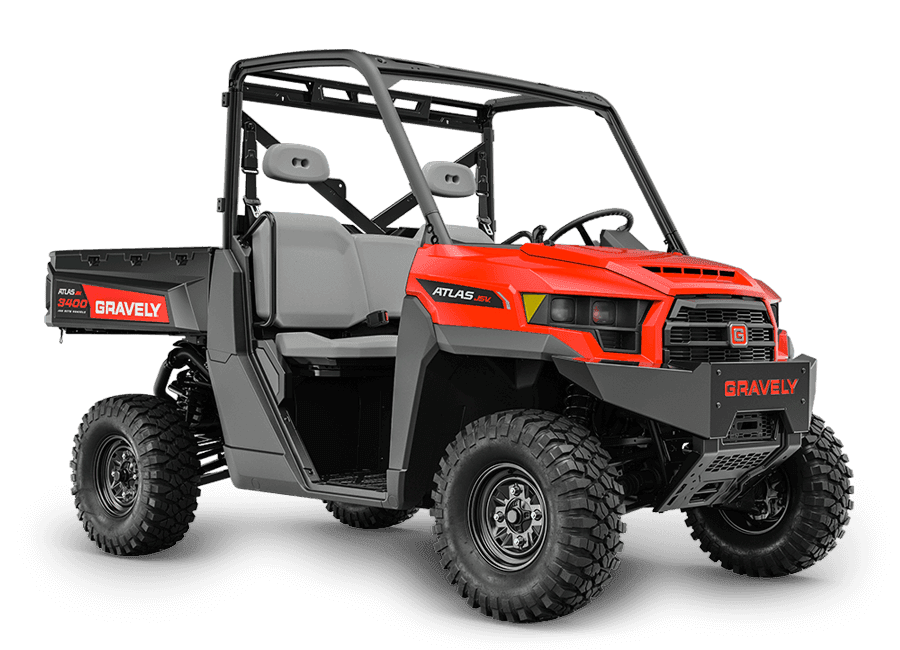

GravelyUtility Vehicle
Atlas JSV-3400
Atlas JSV 3400 Series
Model 996209
Blaze your own trail.
Manufacturer's suggested retail price
$21,299
Dealer pricing, promotions and financing vary — confirm with your dealer.
Engine
Polaris 2-Cylinder, SOHC
Horsepower
40 hp
Engine Displacement
999 cc
Power Source
Gas
Features
- There's no shortage of power and torque in the Atlas JSV 3400 and 3400SD. You can haul, work, tow, dump · and a ton of other jobs you haven't even discovered yet. It features heavy-duty suspension and seats three comfortably.
- Powertrain Strength: A two-cylinder, 1000cc, OHC engine, stronger clutch and smoother drivetrain tackle demanding jobsite conditions.
- All-Steel Job Box*: The Atlas JSV’s fabricated all-steel cargo bed won’t buckle or bend. Dump cargo with the touch of a button and haul a fully loaded pallet, thanks to a generous 18 cubic feet of cargo space. *Steel cargo bed available on 3400SD model only.
- Chassis and Suspension: A one-piece chassis and independent rear suspension offers rigidity in the toughest work environments.
Full Specifications
Engine
EnginePolaris 2-Cylinder, SOHC
Horsepower40 hp
Engine Displacement999 cc
Power SourceGas
Battery TypeLead Acid - Maintenance Free
Drive
Drive Train4x4
Ground Speed35 mph
Brake TypeLever Activated Parking
Front Wheels26 x 10-12 in
Rear Wheels26 x 10-12 in
Fuel
Fuel Capacity11.5 gal
Dimensions & Weight
Length125 in
Width62.5 in
Weight1790 lb
Payload1800 lb
Features
Box MaterialPoly
Warranty
Warranty1 year limited
General
Driver PositionSit
Primary UseCommercial
TerrainMostly Flat, Slight Slopes, Uneven Terrains
