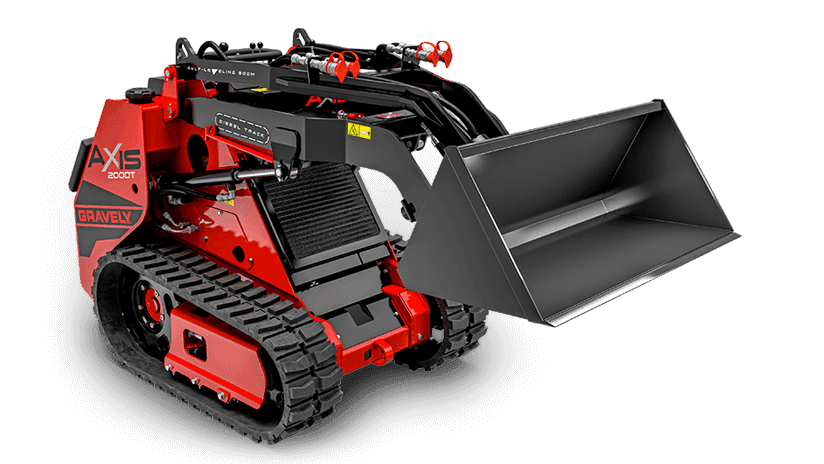

GravelyCompact Utility Loader
AXIS 200DT
AXIS 200 Series
Model 950010
Manufacturer's suggested retail price
$26,299
Dealer pricing, promotions and financing vary — confirm with your dealer.
Engine
Kubota D1105-E4B
Horsepower
25 hp
Weight
2525 lb
Features
- This 2,500lb track model multi-tool machine is powered by a durable Kubota D1105 25 HP diesel engine, running at a top speed of 3.5 MPH. With an overall operating height of 85in, the AXIS 200DT has the ability to dump at a height of 48.8in while at a 45-degree angle. The 497lbs of lifting capacity with a tipping capacity of 1,420lbs, allows this compact utility loader to maximize your crew’s time in the field when you want to get the job done efficiently while putting the power where you need it.
- Powerful Diesel Engines: Models feature the Kubota D1105 25 HP Diesel.
- Dual Lift Cylinder Arms: Strong and self-leveling, they can lift up to 631 lbs. with a tipping load of up to 1,262 lbs.
- Tires or Tracks: Models options include big 18 x 8.5 x 8 bar style tires or embedded steel rubber tracks that come in 7" or 9" tracks.
Full Specifications
Engine
EngineKubota D1105-E4B
Horsepower25 hp
Drive
Ground Speed3.5 mph
Fuel
Fuel Capacity10 gal
Dimensions & Weight
Length63.3 in
Width41.2 in
Weight2525 lb
Max Lift Capacity489 lb
Tipping Capacity1397 lb
Warranty
Warranty1 year limited
General
Driver PositionStand
Primary UseCommercial
TerrainMostly Flat
Gravely
Gravely makes commercial mowers and jobsite equipment; an AriensCo brand, it dates to Benjamin Gravely's 1916 motor-plow patent.
Brillion, Wisconsin
