Alpha HD Trailers

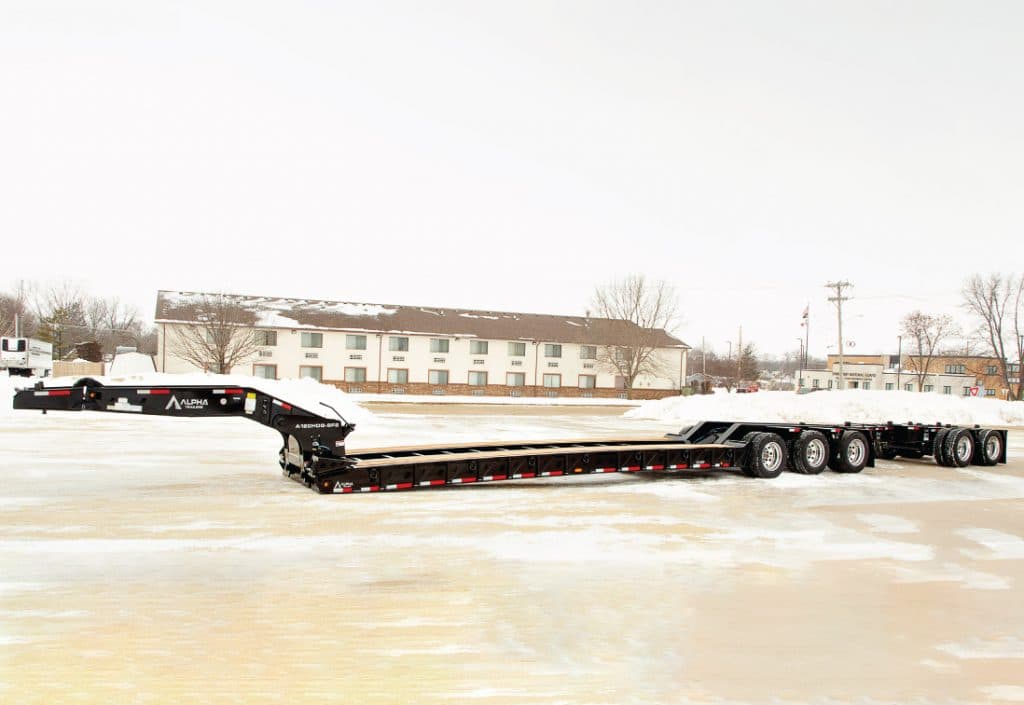

A120HDG-SF2 Hydraulic Detachable Lowboy
Construction Series
Capacity
60 Ton
Deck Height
22"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
Overall Length53 ft
About This Trailer
The Alpha HD A120HDG-SF is our 120,000# payload, hydraulic detachable gooseneck, 3+2 capable lowboy. Some of the standard features the A120HDG-SF2 comes with incudes a scraper style HDG neck with 2 KP settings and 5 ride height positions, 36” flip neck, 1 ¾” Apitong with 12” crossmember spacing, chain drops and upper flange reinforcing, bolt on wheel cover capability, full suspension controls, stainless steel light pkg., 3rd air lift, and T1 steel construction. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL53'
Deck Length26'
Loaded deck height22" or 20"
Capacity
Capacity120,000# in 16'
Axle Capacity(3) 25,000#
Gooseneck
Swing110"/ 84"-146" with 36" flip neck
Fifth Wheel Height51"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
Spreader Bar ConnectionsTwo axle spreader bar connections
