Alpha HD Trailers

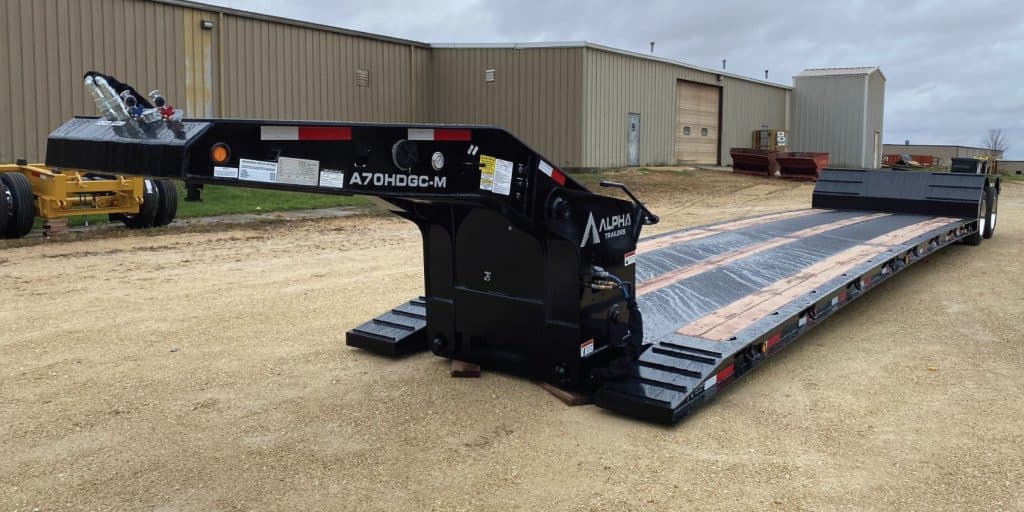

A70HDGC-M Hydraulic Detachable Double Drop
Commercial Series
Capacity
35 Ton
Deck Height
12"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length33.6 ft
Overall Length53 ft
About This Trailer
The Alpha HD A70HDGC-M is our 70,000# payload, hydraulic detachable gooseneck double drop, low deck. Some of the standard features the A70HDGC-M come with include, 5 neck ride height settings, 12” loaded deck height, chain drops from the front to rear of the low deck, full suspension adjustment controls, apitong deck, and T1 steel construction. Other capacities and dimensions available. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL53'
Deck Length33' 7"
Loaded deck height12"
Capacity
Capacity60,000# in 16', 70,000# Dist.
Axle Capacity(2) 25,000#
Gooseneck
Swing80"
Fifth Wheel Height49"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
