Alpha HD Trailers

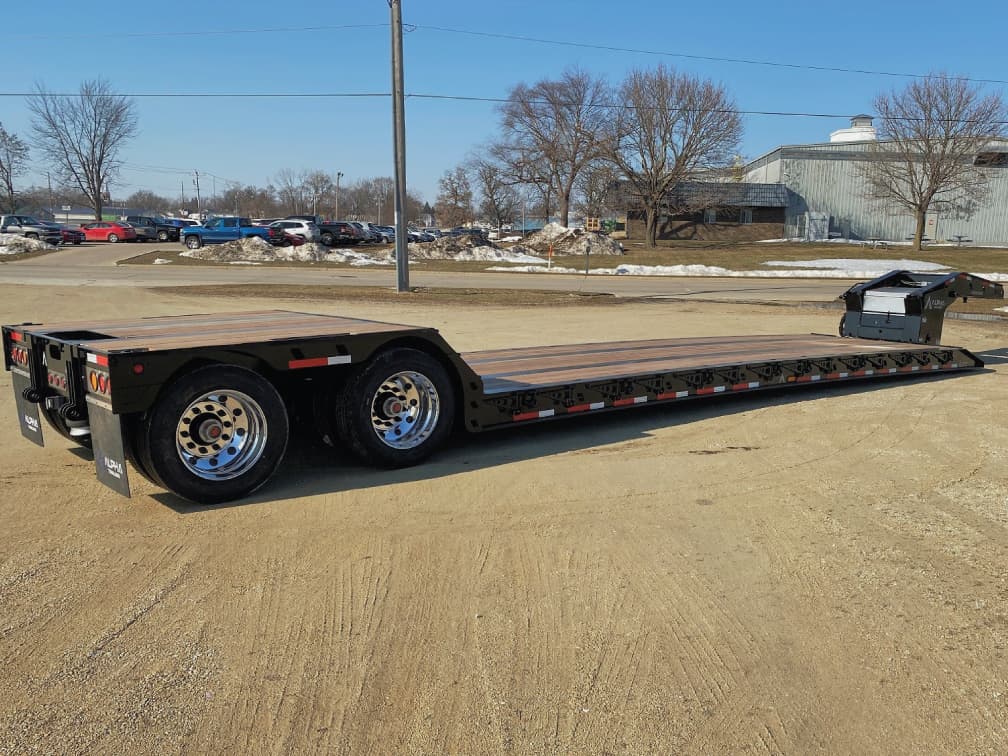

A80HDGC Hydraulic Detachable Double Drop
Commercial Series
Capacity
40 Ton
Deck Height
18"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length28.6 ft
Overall Length48 ft
About This Trailer
The Alpha HD A80HDGC is our 80,000# payload, hydraulic detachable gooseneck double drop. Some of the standard features the A80HDGC come with include, 5 neck ride height settings, 12” crossmember spacing, outriggers and chain drops from the front to rear of the low deck, full suspension adjustment controls, apitong deck, and T1 steel construction. Other capacities and dimensions available. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length28' 7"
Loaded deck height18"
Capacity
Capacity70,000# in 16', 80,000# Dist.
Axle Capacity(2) 25,000#
Gooseneck
Swing80"
Fifth Wheel Height49"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
