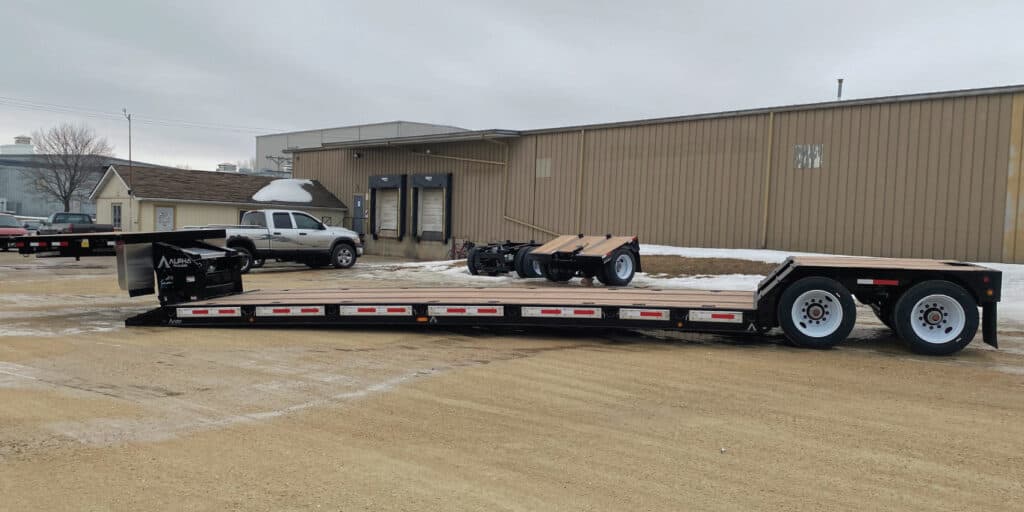

A80HDGC-P Hydraulic Detachable Double Drop
Commercial Series
Capacity
40 Ton
Deck Height
18"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length28.6 ft
Overall Length48 ft
About This Trailer
The Alpha HD A80HDGC-P is our 80,000# payload, hydraulic detachable gooseneck double drop with aluminum pull-out’s. Some of the standard features the A80HDGC-P come with include, 5 neck ride height settings, pull-out outriggers and chain drops from the front to rear of the low deck, full suspension adjustment controls, apitong deck, and T1 steel construction. Other capacities and dimensions available. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length28' 7"
Loaded deck height18"
Capacity
Capacity70,000# in 16', 80,000# Dist.
Axle Capacity(2) 25,000#
Gooseneck
Swing80"
Fifth Wheel Height49"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
