Alpha HD Trailers

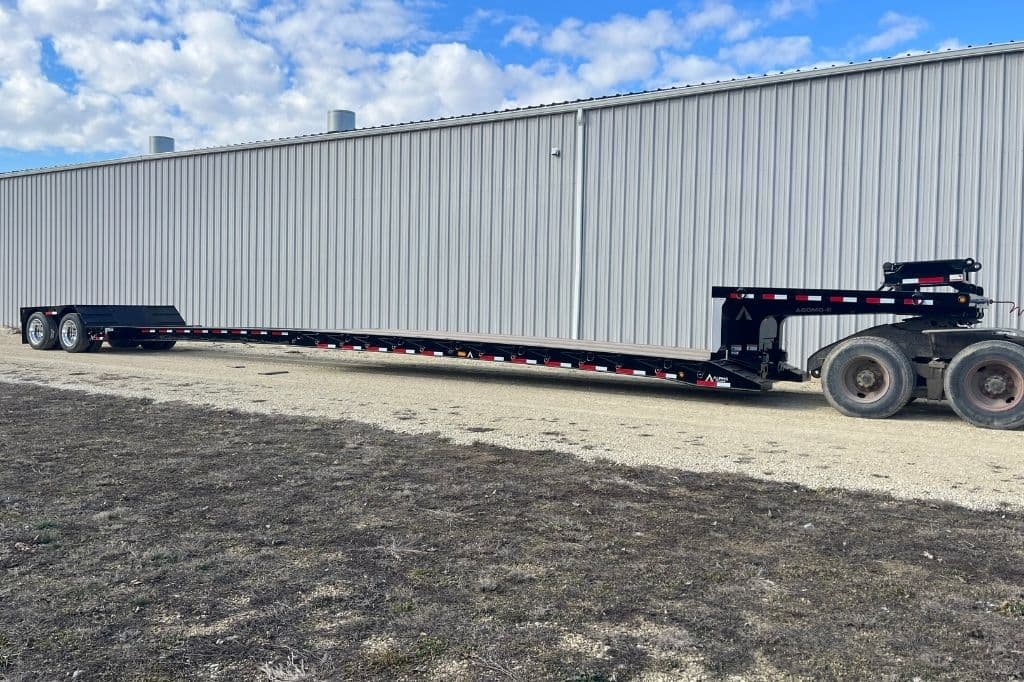

A80MG-E Mechanical Gooseneck Extendable Double Drop
Commercial Series
Capacity
40 Ton
Deck Height
20"
Axles
2-Axle
Gooseneck
Mechanical Detachable
Deck Length29 ft
Overall Length48 ft
About This Trailer
The Alpha HD A80MG-E is our 80,000# payload, mechanical gooseneck, double drop, extendable. Some of the standard features the A80MG-E comes with includes, an air assisted gooseneck support arm, 12” crossmember spacing, outriggers, d-rings, and chain drops on the deck. Full suspension adjustment and override controls. Apitong decking, and T1 steel construction. Other capacities and configurations are available upon request. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length29' closed, 50' 4" open, in 2' increments
Loaded deck height20"
Loaded ground clearance6" on center beams, 8" on outside beams
Capacity
Capacity80,000# in 16' closed, 80,000# open in a two-point self-supporting load base
Axle Capacity(2) 25,000#
Gooseneck
Swing85", 121" with 36" flip neck
Fifth Wheel Height49" and 51"
Running Gear
Axle Spacing54.5"
SuspensionCush 25k Air
Tires255/70R22.5
Flip Axle ConnectionsYes
Alpha HD Trailers
Alpha HD Trailers builds hydraulic and mechanical detachable gooseneck lowboy and double-drop trailers in Oelwein, Iowa.
Oelwein, IA
