Alpha HD Trailers
A80MG Mechanical Gooseneck Double Drop
Commercial Series
Capacity
40 Ton
Deck Height
18"
Axles
2-Axle
Gooseneck
Mechanical Detachable
Deck Length29 ft
Overall Length48 ft
About This Trailer

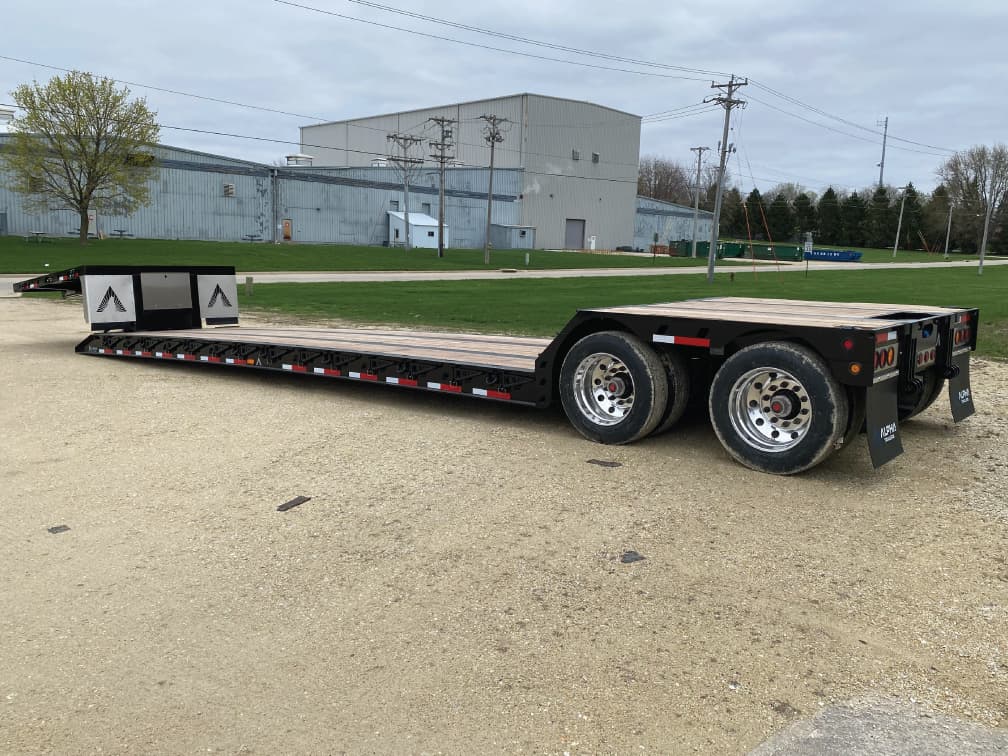

The Alpha HD A80MG is our 80,000# payload, mechanical gooseneck, double drop. Some of the standard features the A80MG comes with includes an air-assisted gooseneck support arm, 12” crossmember spacing, 2-position neck connector plate, and chain drops from the front to rear of the trailer, apitong deck, and T1 steel construction. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length29'
Loaded deck height18"
Capacity
Capacity70,000# in 16', 80,000# Dist.
Axle Capacity(2) 25,000#
Gooseneck
Swing84"
Fifth Wheel Height49"/51"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
