Alpha HD Trailers

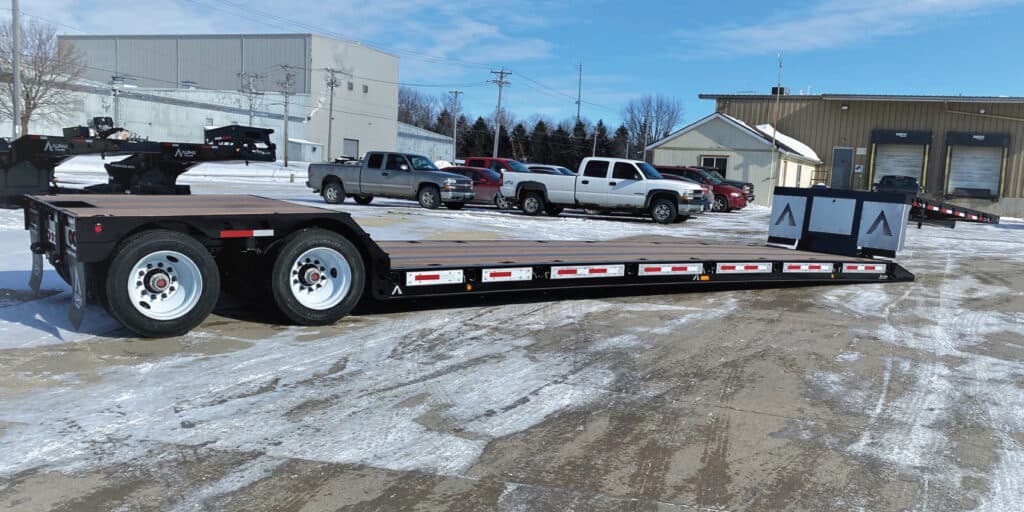

A80MG-P Mechanical Gooseneck Double Drop
Commercial Series
Capacity
40 Ton
Deck Height
18"
Axles
2-Axle
Gooseneck
Mechanical Detachable
Deck Length29 ft
Overall Length48 ft
About This Trailer
The Alpha HD A80MG is our 80,000# payload, mechanical gooseneck, double drop w/ aluminum pull-out outriggers. Some of the standard features the A80MG comes with incudes, an air assisted gooseneck support arm, 12” crossmember spacing, 2 position neck connector plate, and chain drops from the front to rear of the trailer, tractor tongue cutout in rear transition, apitong deck, and T1 steel construction. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length29'
Loaded deck height18"
Capacity
Capacity70,000# in 16', 80,000# Dist.
Axle Capacity(2) 25,000#
Gooseneck
Swing84"
Fifth Wheel Height49"/51"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
Alpha HD Trailers
Alpha HD Trailers builds hydraulic and mechanical detachable gooseneck lowboy and double-drop trailers in Oelwein, Iowa.
Oelwein, IA
