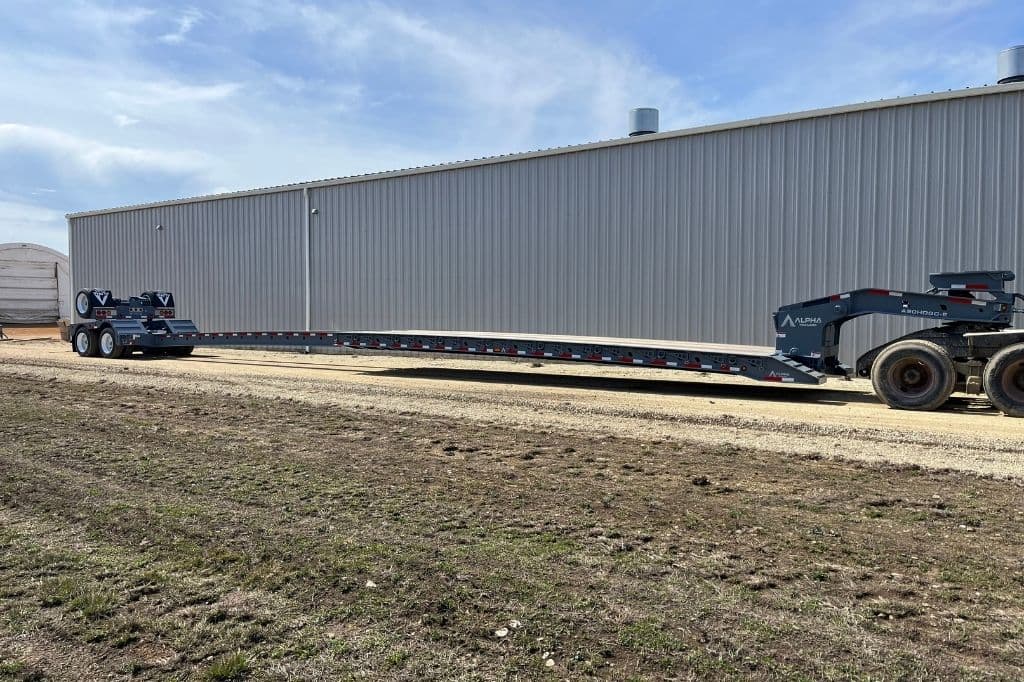

A90HDGC-E Hydraulic Detachable Extendable Double Drop
Commercial Series
Capacity
45 Ton
Deck Height
20"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length28.6 ft
Overall Length48 ft
About This Trailer
The Alpha HD A90HDGC-E is our 90,000# payload, HDG, double drop extendable. Some of the standard features the A90HDGC-E comes with are, 5 neck ride height settings, flip neck connections, 12” crossmember spacing, outriggers, d-rings, and chain drops on the deck. Full suspension adjustment and override controls. Apitong decking, and T1 steel construction. Other capacities and configurations are available upon request. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length28' 7" closed, 50' open, in 2' increments
Loaded deck height20"
Loaded ground clearance6" on center beams, 8" on outside beams
Capacity
Capacity90,000# in 16' closed, 90,000# open in a two-point self-supporting load base
Axle Capacity(2) 25,000#
Gooseneck
Swing80", 116" with 36" flip neck
Fifth Wheel Height49"
Running Gear
Axle Spacing54.5"
SuspensionCush 25k Air
Tires255/70R22.5
Flip/Stinger Axle Connections2+2 Capable
