Alpha HD Trailers

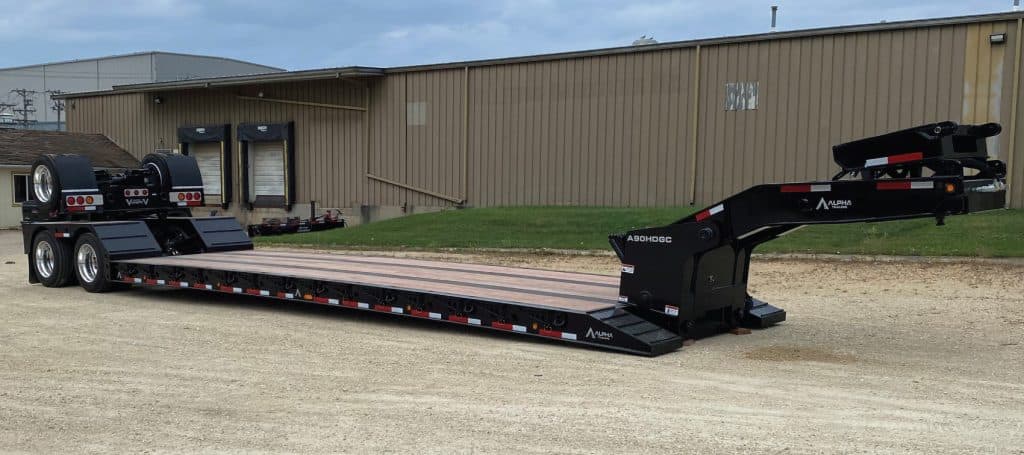

A90HDGC Hydraulic Detachable Double Drop
Commercial Series
Capacity
45 Ton
Deck Height
18"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length28.6 ft
Overall Length48 ft
About This Trailer
The Alpha HD A90HDGC is our 90,000# payload, hydraulic detachable gooseneck double drop. Some of the standard features the A90HDGC come with include, 5 neck ride height settings, 12” crossmember spacing, outriggers and chain drops from the front to rear of the low deck, full suspension adjustment controls, apitong deck, and T1 steel construction. Other capacities and dimensions available. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length28' 7"
Loaded deck height18"
Capacity
Capacity80,000# in 16', 90,000# Dist.
Axle Capacity(2) 25,000#
Gooseneck
Swing80", 116" with 36" flip neck
Fifth Wheel Height49"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
Alpha HD Trailers
Alpha HD Trailers builds hydraulic and mechanical detachable gooseneck lowboy and double-drop trailers in Oelwein, Iowa.
Oelwein, IA
