Alpha HD Trailers
A90MG Mechanical Gooseneck Double Drop
Commercial Series
Capacity
45 Ton
Deck Height
18"
Axles
2-Axle
Gooseneck
Mechanical Detachable
Deck Length29 ft
Overall Length48 ft
About This Trailer

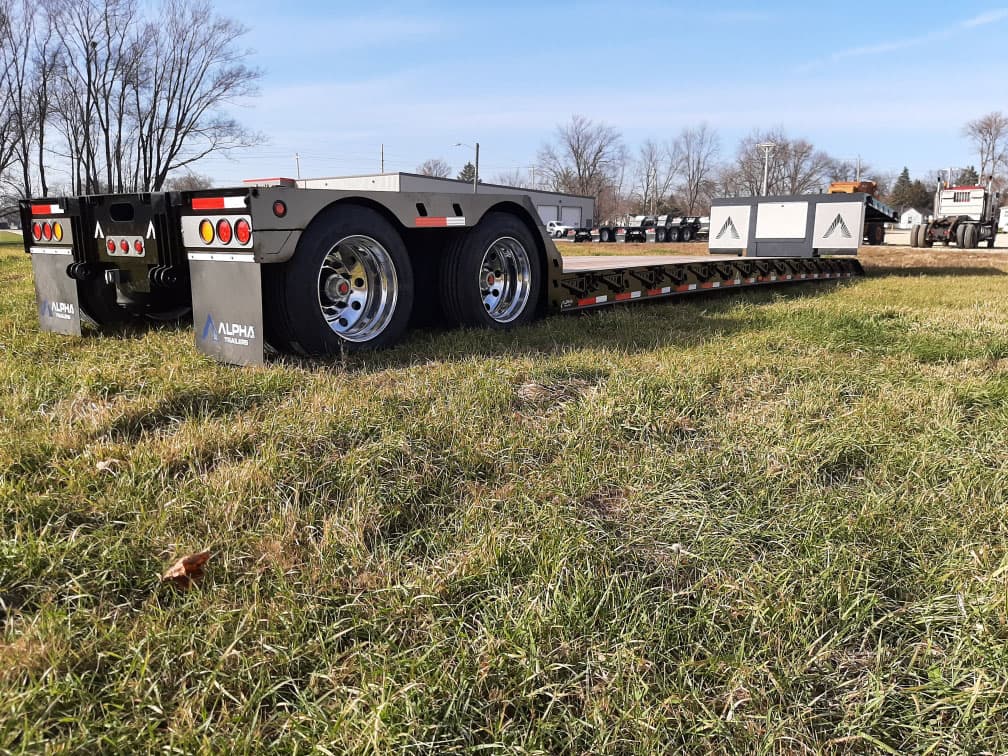

The Alpha HD A90MG is our 90,000# payload, mechanical gooseneck, double drop. Some of the standard features the A80MG comes with incudes, 36” flip neck connections, air assisted gooseneck support arm, 12” crossmember spacing, 2 position neck connector plate, and chain drops from the front to rear of the trailer, apitong deck, and T1 steel construction. For a full list of specs please contact us.
Full Specifications
Dimensions
OAL48'
Deck Length29'
Loaded deck height18"
Capacity
Capacity80,000# in 16', 90,000# Dist.
Axle Capacity(2) 25,000#
Gooseneck
Swing84"-120" with 36" flip neck
Fifth Wheel Height49"/51"
Running Gear
Axle Spacing54.5"
SuspensionAir Ride
Tires255/70R22.5
Flip Axle ConnectionsYes
Alpha HD Trailers
Alpha HD Trailers builds hydraulic and mechanical detachable gooseneck lowboy and double-drop trailers in Oelwein, Iowa.
Oelwein, IA
