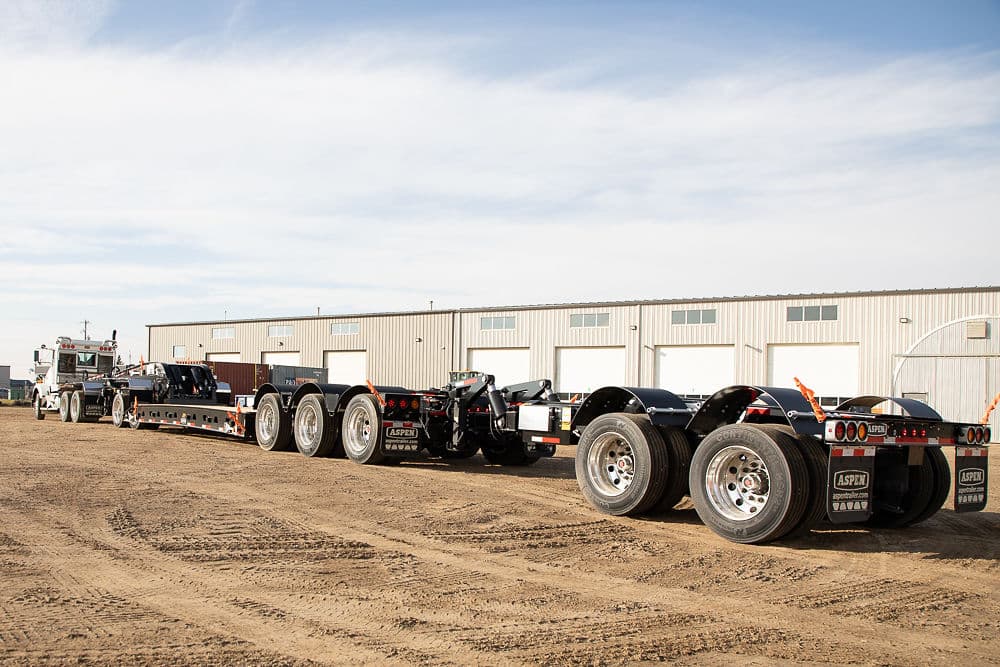

Aspen E-TRANSPORTER
E-Series Series
e-series 65 ton triaxle HG transporter
Capacity
65 Ton
Deck Height
23"
Deck Length23.5 ft
Overall Length53 ft
About This Trailer
This Aspen E-Series
Full Specifications
Dimensions
Load Capacity130,000lbs (58,987kg) in 15′-0″ length
Width Overall8’-6” nominal
Track Width8’-6” nominal overall tire width
Length Overall53’-0”
Deck Length23’-6”
Wheelbase41’-9”
Tractor Clearance88”, 112” and 168” with flip
Fifth Wheel Height50”
Loaded Deck Height23”
Loaded Ground Clearance6”
Air/electrical
AxlesSteel hub, Cast drum c/w Rear axle air lift
WheelsMachined & Polished Aluminum
Tires275/70 R 22.5 Highway Radials
Suspension75,000 lbs Air Ride with Shock straps
Paint
Paint CodeRequired Upon Authorization
AxlesSteel hub, Cast drum c/w Rear axle air lift
WheelsMachined & Polished Aluminum
Tires275/70 R 22.5 Highway Radials
Suspension75,000 lbs Air Ride with Shock straps
Included optional equipment
Dual source hydraulicsWet kit and Power pack
