Cozad Trailers

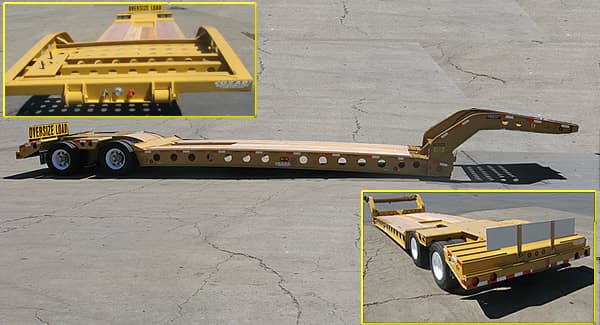

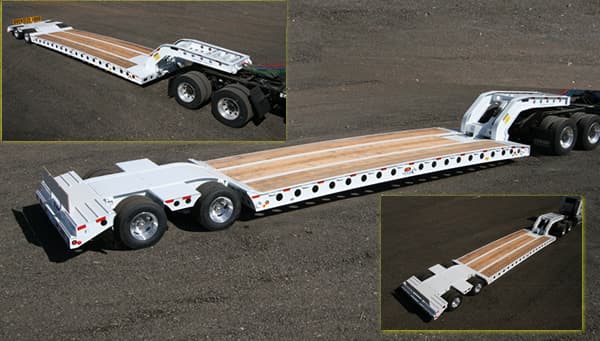

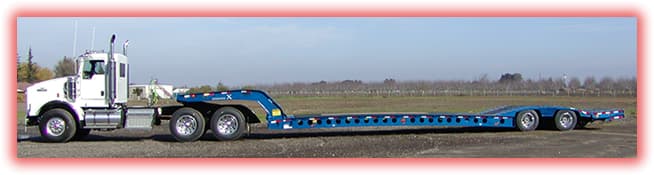

35 Ton Flip Tail Trailer
Capacity
35 Ton
Deck Height
23"
Gooseneck
Mechanical Detachable
Deck Length23 ft
Overall Length47.9 ft
Empty Weight16,000 lbs
Full Specifications
Options
DeckingApitong (2.5")
Deck / OptionsTool Box; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminum
Gooseneck(s)9' Mechanical Detachable; Full Screen; Spare Tire Bracket; Warn Electric Winch
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum / 8 hole Hub Pilot
PaintYour color
Running Gear
SuspensionAir Ride 54” Axle Spreads
BrakesS Cam drum brakes
Tires235/75R x 17.5 Continental
WheelsSteel Disc, 8 hole Hub Pilot
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir [2.5”]
Deck / Options23’ Length STD; 8’-6” Wide
Overall Length47' -11” With 8’ Gooseneck
Deck Height (Empty)27'
Deck Height (Loaded)23'
Weight
Weight (Estimated)16,000 lbs.
Gooseneck
Gooseneck(s)8' Mechanical Detachable
Cozad Trailers

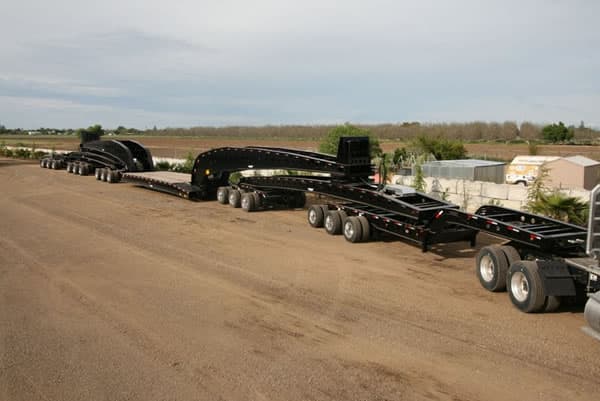

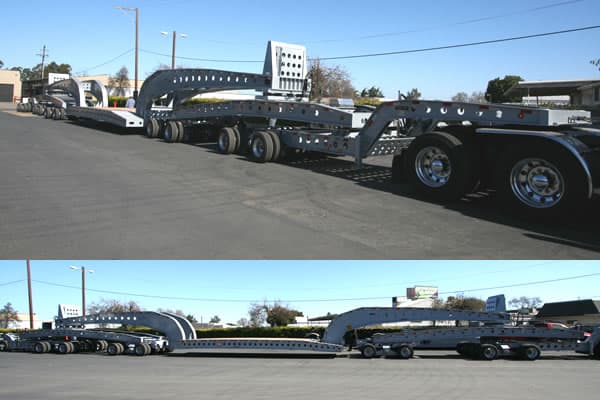

Stockton, California builder of heavy-haul detachable gooseneck lowboy trailers, from 35-ton two-axle models to 110-ton multi-axle conversion trailers.
Stockton, California
