Cozad Trailers

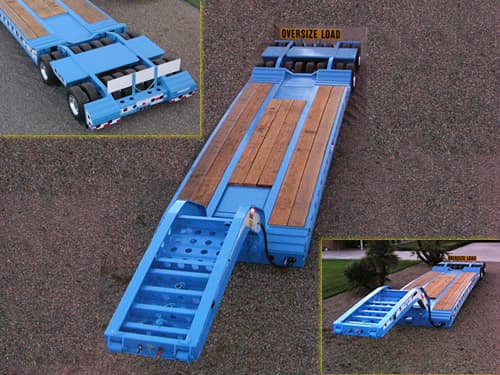

44 Ton Gen-X II Narrow Neck Expando Trailer
Capacity
44 Ton
Deck Height
27"
Gooseneck
Mechanical Detachable
Deck Length22.7 ft
Overall Length44 ft
Empty Weight16,500 lbs
Full Specifications
Running Gear
SuspensionWalking Beam
Axles25,000 lb Oil Bath
BrakesS Cam drum brakes
Tires215/75R x 17.5 Continental
WheelsSteel Disc, 8 Hole Hub Pilot
Options
Decking(2.5") Apitong
Gooseneck(s)9-8” With 2 Pins; Spare Tire Bracket; Full Screen; Gooseneck fenders
Deck/OptionsTool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminu
Back-end/OptionsScraper Fenders [Front / Rear Axle]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
Wheels8 hole / Aluminum Hub Pilot
PaintYour color
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (2.5")
Deck/Options22'-8" Length STD; 8’-6” Wide
Back-end/Options8'6" Wide / Expands to 10' Wide; 69” Axle Spread
Overall Length44' Estimate With 8’ Gooseneck
Deck Height27" estimate only
Gooseneck
Gooseneck(s)Mechanical Detachable 8' STD
Weight
Weight16,500 +/-3%
