Cozad Trailers

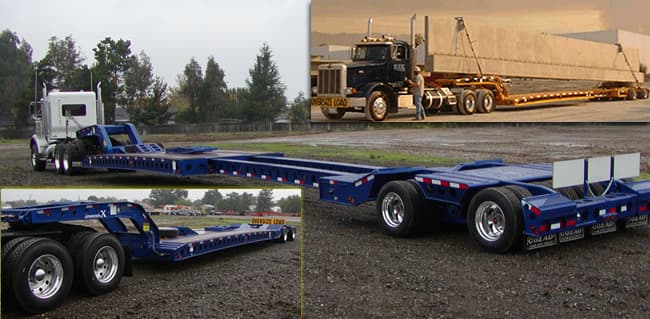

44 Ton Gen-X II Stretch Expando Trailer
Capacity
44 Ton
Deck Height
27"
Gooseneck
Mechanical Detachable
Deck Length27.8 ft
Overall Length51.6 ft
Empty Weight22,000 lbs
Full Specifications
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (2.5")
Deck/Options27'-10" To 47’-10” Length STD; 8’-6” Wide
Back-end/Options8'6" Wide / Expands to 10' Wide; 69” Axle Spread
Overall Length51'-7” [Closed] With 10’-6” Neck
Deck Height27" estimate only
Options
Decking(2.5") Apitong
Gooseneck(s)9' W / 2 Pins Or 10'6" W / 3Pins; Spare Tire Bracket
Deck/OptionsTool Box; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminum
Back-end/OptionsScraper Fenders [Front / Rear Axle]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
Wheels8 hole / Aluminum Hub Pilot
PaintYour color
Gooseneck
Gooseneck(s)Mechanical Detachable 8' STD
Running Gear
SuspensionWalking Beam
Axles25,000 lb Oil Bath
BrakesS Cam drum brakes
Tires215/75R x 17.5 Continental
WheelsSteel Disc, 8 Hole Hub Pilot
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Estimated Weight22,000 +/-3%
Cozad Trailers
Stockton, California builder of heavy-haul detachable gooseneck lowboy trailers, from 35-ton two-axle models to 110-ton multi-axle conversion trailers.
