Cozad Trailers

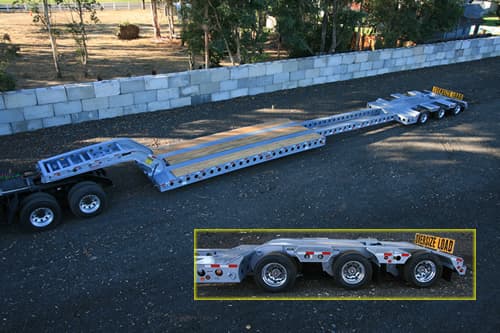

50 Ton 3-Axle Stretch Deck Trailer with 3rd Flip Axle
Capacity
50 Ton
Deck Height
27"
Axles
3-Axle
Gooseneck
Mechanical Detachable
Deck Length24.5 ft
Overall Length52 ft
Empty Weight21,500 lbs
Full Specifications
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (3")
Deck/Options24'-6" To 42’-6” Length STD; 8’-6” Wide
Back-end/Options8'6" Wide; 54” / 60” Axle Spreads
Overall Length52'-7-1/2” [Closed] With 10’-6” Neck; Flip Axle Down
Deck Height27" estimate only
Options
Decking(3") Apitong
Gooseneck(s)9' W / 2 Pins Or 10'6" W / 3Pins; Spare Tire Bracket
Deck/OptionsTool Box; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminum
Back-end/OptionsScraper Fenders [Front / Rear Axle]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Brakes17.5 Air Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum / 10 Hole Stud Pilot; Aluminum / 8 Hole Hub Pilot W/Air Disc Brakes
PaintYour color
Gooseneck
Gooseneck(s)Mechanical Detachable 8' STD
Running Gear
SuspensionAir Ride
Axles25,000 lb Oil Bath
Brakes12-1/4 x 5-1/2” Drum Brake
Tires215/75R x 17.5 Continental
WheelsSteel Disc, 10 Hole Stud Pilot
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Estimated Weight21,500 +/-3% As 3-Axle; 18,700 +/-3% As 2 Axle
Cozad Trailers
Stockton, California builder of heavy-haul detachable gooseneck lowboy trailers, from 35-ton two-axle models to 110-ton multi-axle conversion trailers.
Stockton, California
