Cozad Trailers

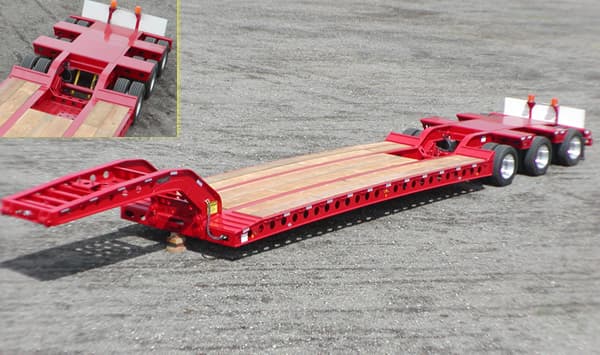

50 Ton 3-Axle Trailer
Capacity
50 Ton
Deck Height
27"
Axles
3-Axle
Gooseneck
Mechanical Detachable
Deck Length24.5 ft
Overall Length53 ft
Full Specifications
Construction
Construction100% A514 T-1 Steel
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir 2-1/2"
Deck / Options24’-6” Length STD; 8’-6” Wide
Back-End /Options60” Axle Spreads
Length52'
Flat Deck Height27" Empty estimates only
Overall LengthUnder 53’' With 24’-6” Deck / 11’ Neck
Options
Decking2-1/2” Apitong
Deck / OptionsTool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminum
Back-End /OptionsScraper Fenders [Front / Mid / Rear Axle]; Cover Plate Over Center; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Gooseneck(s)Hydraulic; Spare Tire Bracket {Mechanical Neck Only]
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum, 10 Hole Hub Pilot
PaintYour color
Gooseneck
Gooseneck(s)Mech. Detachable
Running Gear
SuspensionAir Ride
BrakesS Cam drum brakes
Tires265/70 R19.5
WheelsSteel Disc, 10 Hole Hub Pilot
Axles25,000 lb Oil Bath
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Estimated Weight(12) Heavy Duty 3" wide
Cozad Trailers
Stockton, California builder of heavy-haul detachable gooseneck lowboy trailers, from 35-ton two-axle models to 110-ton multi-axle conversion trailers.
Stockton, California
