Cozad Trailers

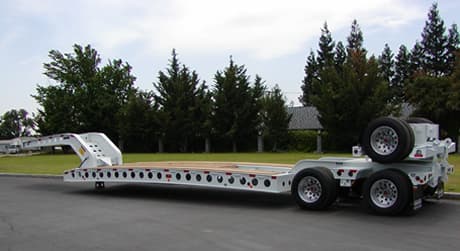

50 Ton Trailer with 3rd Flip Axle
Capacity
50 Ton
Deck Height
24"
Gooseneck
Mechanical Detachable
Deck Length21 ft
Overall Length42.2 ft
Empty Weight15,500 lbs
Full Specifications
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir [2.5”]
Deck / Options21’ Length STD; 8’-6” Wide
Flat Deck Height27" Empty estimates only
Back-End/Options60” Axle Spreads
Overall Length42'-2” Estimate With 8’ Gooseneck
Deck Height24" estimate only
Options
DeckingApitong (2.5")
Deck / OptionsTool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3" wide; 2’ Front Loading Ramps / Steel / Aluminu
Back-End/OptionsScraper Fenders [Front / Mid / Rear Axle]; Cover Plate Over Center; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Gooseneck(s)Hydraulic; Spare Tire Bracket {Mechanical Neck Only]
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum / 8 hole Hub Pilot
PaintYour color
Gooseneck
Gooseneck(s)Mech. Detachable
Running Gear
SuspensionAir Ride
BrakesS Cam drum brakes
Tires215/75R x 17.5 Continenta
WheelsSteel Disc, 8 hole Hub Pilot
Axles25,000 lb Oil Bath
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Weight (Estimated)15,500 +/-3%
