Cozad Trailers

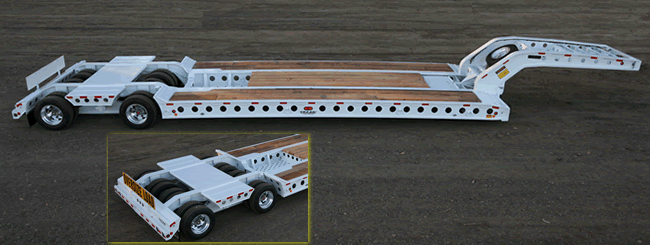

60 Ton 10 Foot Wide Trailer
Capacity
60 Ton
Deck Height
27"
Gooseneck
Mechanical Detachable
Deck Length24 ft
Overall Length46.7 ft
Empty Weight18,700 lbs
Full Specifications
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (2.5")
Deck /Options10' Wide Std; 24’ Length
Back-End Options72” Axle Spreads
Overall Length46'-8” Estimate
Deck Length24'
Deck Width10' Wide Std
Deck Height27" estimate only
Options
Decking(2.5") Apitong
Gooseneck(s)9'w/2 pins or10'6" w/3 pins; Spare Tire Bracket; Tool Box
TiresAuto Air Inflation System
Wheels8 Hole / Aluminum Hub Pilot
PaintYour color
Deck /OptionsTool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3"; 2’ Front Loading Ramps / Steel / Aluminum
Back-End OptionsScraper Fenders [Front / Rear Axle]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Gooseneck
Gooseneck(s)Mechanical Detachable 8' STD Short Neck
Running Gear
SuspensionWalking Beam
BrakesAir Disc (Anti-Lock)
Tires215/75R x 17.5 Continental
WheelsSteel Disc, 8 Hole Hub Pilot
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Weight18,700 +/-3% Estimate
