Cozad Trailers

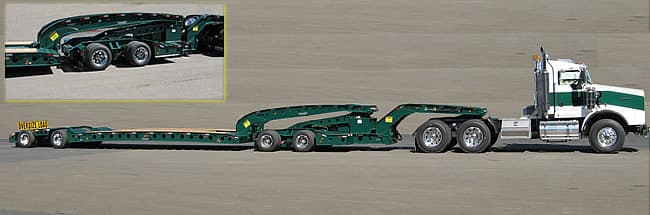

60 Ton Expando 7-Axle Trailer
Capacity
60 Ton
Deck Height
27"
Axles
7-Axle
Gooseneck
Mechanical Detachable
Deck Length22 ft
Overall Length64 ft
Empty Weight18,000 lbs
Full Specifications
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (2.5")
Deck /Options8'6" Wide; 22’-8” Length
Back-End Options8'6" Wide Expands to 10' WidE
Overall Length64' estimate
Deck Length22'-8
Deck Width10' Wide Std
Deck Height27" estimate only
Options
Decking(2.5") Apitong
Gooseneck(s)9'w/2 pins or10'6" w/3 pins[Small Neck]; Spare Tire Bracket [Small Neck]; Tool Box [Small Neck]
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
Wheels8 Hole / Aluminum Hub Pilot
PaintYour color
Deck /OptionsTool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (12) Heavy Duty 3"; 2’ Front Loading Ramps / Steel / Aluminu
Back-End OptionsScraper Fenders [Front / Rear Axle]; Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Hydraulic LiftKohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
Gooseneck
Gooseneck(s)Mechanical Detachable 8' STD Short Neck; 16’ Detachable STD Long Nec
Running Gear
SuspensionWalking Beam
BrakesS Cam drum brakes
Tires215/75R x 17.5 Continental
WheelsSteel Disc, 8 Hole Hub Pilot
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
WeightTrailer 18,000 / Jeep 13,000 +/-3%
Hydraulics
Hydraulic LiftKohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 16" Lift
Jeep16” Hyd Lift STD
Cozad Trailers
Stockton, California builder of heavy-haul detachable gooseneck lowboy trailers, from 35-ton two-axle models to 110-ton multi-axle conversion trailers.
Stockton, California
