Cozad Trailers

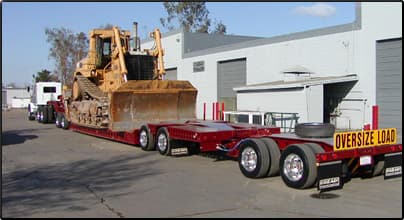

70/75 Ton California Baby 9-Axle Trailer
Capacity
70-75 Ton
Deck Height
18"
Axles
9-Axle
Gooseneck
Mechanical Detachable
Deck Length26 ft
Overall Length86 ft
Empty Weight37,500 lbs
Full Specifications
Construction
Construction100% HT 130 Steel
Paint2 coats primer & paint; White STD / Your color
Outriggers(18) Heavy Duty 3" wide
Dimensions
DeckingDouglas fir (3") / Apitong
Deck Length26' STD / 28 -30' optional
Flat Deck Height21" - 23" loaded - estimates only
Drop Side Height16" - 18" loaded - estimates only
Deck Width8'6" STD
Overall Length86'
Gooseneck
Gooseneck(s)Mechanical Detachable
Running Gear
SuspensionWalking Beam and Air
AxlesIMT 25,000 lb w/ oil seals
BrakesDrum S-cam / DISC Brakes
Tires265/70R x 19.5 Continental
WheelsSteel Disc, 10 hole / Aluminum
Hydraulics
Hydraulic LiftKholer 25 hp Electric pull-start; Gas engine w/2 50 ton hydraulic Rams; 24" lift
Electrical
LightingGrote Modular Sealed; Wiring System LED
Weight
Estimated Weight37,500 lbs +/-
