Cozad Trailers

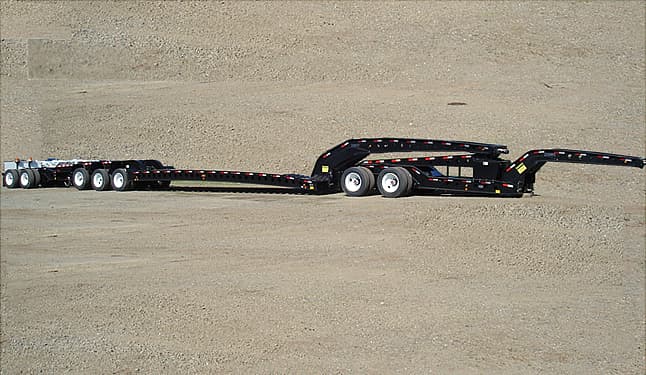

70 Ton 2-3-2 Booster Trailer
Capacity
70 Ton
Deck Height
28"
Gooseneck
Mechanical Detachable
Deck Length28 ft
Overall Length99.5 ft
Empty Weight54,200 lbs
Full Specifications
Construction
Construction100% A514 T-1
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (2.5")
Deck Length28' STD
Flat Deck Height33" Empty estimates only
Drop Side Height28" Empty estimates only
Deck Type /OptionsDrop Side / Flat deck
Width8’-6”' STD
Overall Length99’-6” Estimate
Options
Decking(2.5") Apitong
Deck LengthSpecial Length Optional
Outriggers(18) Heavy Duty 3" wide
Deck Type /OptionsPin Joint / Deck Extension[‘s]; Tool Box In Front Of Deck; Excavator Tray Rear Of Deck
Width10’ Wide
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum, 10 Hole Hub Pilot
JeepDetachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
BoosterSpare Tire Brackets; Hydraulic Bump SteeringWith Kohler 13 HP Electric / Pull-start Gas Engine
Hydraulic LifeKohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
PaintYour color
Gooseneck
Gooseneck(s)Mechanical Detachable 8' STD
Running Gear
SuspensionRubber Bushed Walking Beam
Axles25,000 lb Oil Bath
BrakesS Cam drum brakes
Tires275/80 R22.5 Continental
WheelsSteel Disc, 10 Hole Hub Pilot
Hydraulics
Jeep24” Hyd Lift STD
Hydraulic LifeKohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 24" Lift
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Estimated Weight54,200 Lb Estimate
Capacity
Capacity75 Ton
