Cozad Trailers

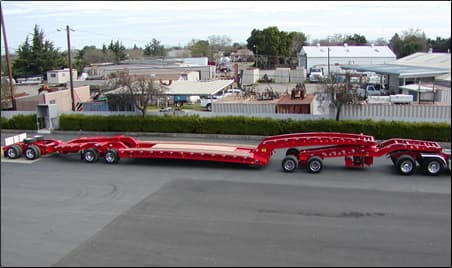

70 Ton Baby 9 Booster Trailer
Capacity
70 Ton
Deck Height
28"
Gooseneck
Mechanical Detachable
Deck Length28 ft
Overall Length88.6 ft
Empty Weight46,500 lbs
Full Specifications
Construction
Construction100% A514 T-1
Paint2 coats primer & paint; White STD
Dimensions
DeckingDouglas fir (3")
Overall Length88’-7” Estimate
Deck Length28' STD
Flat Deck Height33" Empty estimates only
Drop Side Height28" Empty estimates only
Width8’-6”' STD
Deck Type/OptionsDrop Side / Flat deck
Options
DeckingApitong (3")
Hydraulic LiftKohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum, 10 Hole Hub Pilot
PaintYour color
Deck LengthSpecial Length Optional
Width10’ Wide
Deck Type/OptionsPin Joint / Deck Extension[‘s]; Tool Box In Front Of Deck; Excavator Tray Rear Of Deck
JeepDetachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
BoosterSpare Tire Brackets; Hydraulic Bump Steering; With Kohler 13 HP Electric / Pull-start Gas Engine
Outriggers(18) Heavy Duty 3" wide
Gooseneck
Gooseneck(s)Mechanical Detachable
Running Gear
SuspensionRubber bushed Walking Beam
Axles25,000 lb Oil Bath
BrakesS Cam drum brakes
Tires265/70 R19.5 Continental
WheelsSteel Disc, 10 Hole Hub Pilot
Hydraulics
Hydraulic LiftKohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 24" Lift
Jeep24” Hyd Lift STD
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Weight46,500 Lb Estimate
Capacity
Capacity70 Ton
