Cozad Trailers

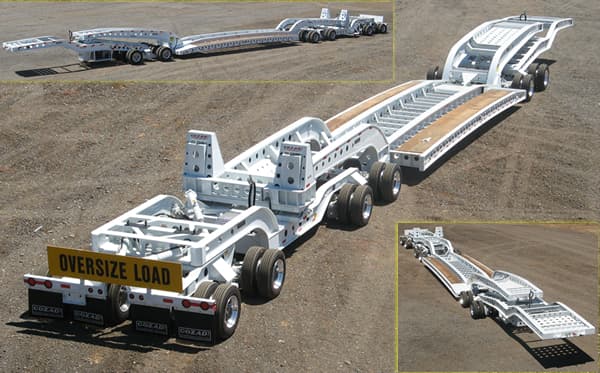

80 Ton 9 Axle Triple 16 Steerable Trailer
Capacity
80 Ton
Deck Height
28"
Axles
9-Axle
Gooseneck
Mechanical Detachable
Deck Length28 ft
Overall Length92.7 ft
Full Specifications
Construction
Construction100% A514 T-1 Steel
Steering Dolly2 / 50 Ton Hydraulic Rams; 24" Lift; Manual Steering Capabilities With Kohler 25 HP Electric / Pull-start Hydraulic System
Paint2 Coats Primer & Paint / White STD
Capacity
Capacity80 Ton
Dimensions
Width10' STD
DeckingDouglas fir (3")
Deck Type/ OptionsDrop Side / Flat deck
Deck Length28' STD
Flat Deck Height33" Empty estimates only
Drop Side Height28" Empty estimates only
Overall Length92’-8” With 28’ Deck
Hydraulics
Jeep2 / 50 Ton Hydraulic Rams; 24" Lift; Kohler 25 HP Electric / Pull-start Hydraulic System
Options
JeepDetachable Neck / Fixed Neck
Steering DollySpare Tire Brackets
DeckingApitong (3")
Deck Type/ OptionsPin Joint / Deck Extension[‘s]; Beam Deck; Tool Box In Front Of Deck; Excavator Tray Rear Of Deck; Outriggers (18) Heavy Duty 3" wide
Deck LengthSpecial Length Optional
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum, 8 Hole Hub Pilot
PaintYour color
Gooseneck
Gooseneck(s)Mech. Detachable
Running Gear
SuspensionRubber Bushed Walking Beam; 72” Axle Spreads
BrakesS Cam drum brakes
Tires215/75R x 17.5 Continental
WheelsSteel Disc, 8 Hole Hub Pilo
Axles25,000 lb Oil Bath
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
