Cozad Trailers

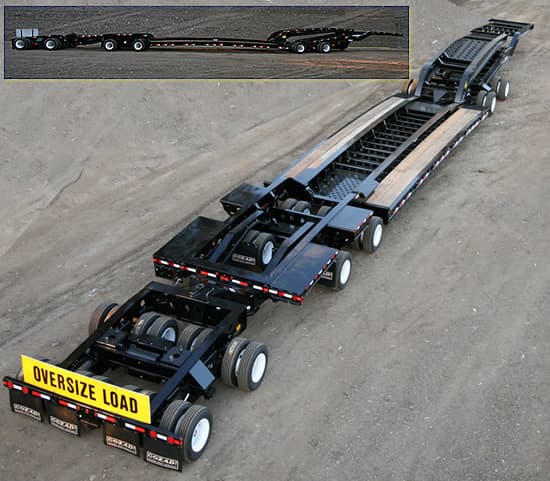

80 Ton Triple 16 Booster Trailer
Capacity
80 Ton
Deck Height
28"
Gooseneck
Mechanical Detachable
Deck Length28 ft
Overall Length88.5 ft
Empty Weight51,000 lbs
Full Specifications
Construction
Construction100% A514 T-1 Steel
Paint2 Coats Primer & Paint / White STD
Capacity
Capacity80 Ton
Dimensions
Width10' STD
DeckingDouglas fir (3")
Deck Type/ OptionsDrop Side / Flat deck
Deck Length28' STD
Flat Deck Height33" Empty estimates only
Drop Side Height28" Empty estimates only
Overall Length88’-6”
Hydraulics
Jeep24” Hyd Lift STD
Hydraulic LiftKohler 13 HP Electric / Pull-start Gas Engine; 2 / 50 Ton Hydraulic Rams; 24" Lift
Options
JeepDetachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
Hydraulic LiftKohler 25 HP Electric / Pull-start; Set-up For Wet Kit On Tractor
BoosterSpare Tire Brackets; Hydraulic Bump Steering; With Kohler 13 HP Electric / Pull-start Gas Engine
DeckingApitong (3")
Deck Type/ OptionsTool Box In Front Of Deck; Excavator Tray Rear Of Deck; Outriggers (18) Heavy Duty 3" wide
Deck LengthSpecial Length Optional
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum, 8 Hole Hub Pilot
PaintYour color
Gooseneck
Gooseneck(s)Mech. Detachable
Running Gear
SuspensionRubber Bushed Walking Beam; 72” Axle Spreads
BrakesS Cam drum brakes
Tires215/75R x 17.5 Continental
WheelsSteel Disc, 8 Hole Hub Pilo
Axles25,000 lb Oil Bath
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Estimated Weight51,000 Lb
Cozad Trailers
Stockton, California builder of heavy-haul detachable gooseneck lowboy trailers, from 35-ton two-axle models to 110-ton multi-axle conversion trailers.
Stockton, California
