Cozad Trailers

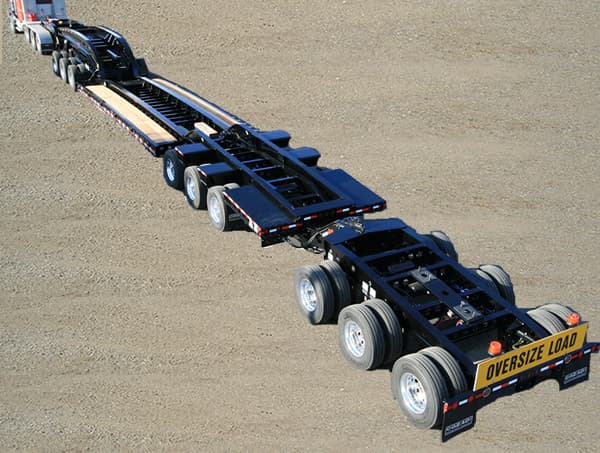

85 Ton Booster Trailer 3+3+3
Capacity
85 Ton
Deck Height
27"
Gooseneck
Mechanical Detachable
Deck Length28 ft
Overall Length108 ft
Empty Weight70,800 lbs
Full Specifications
Construction
Construction100% A514 T-1 STEEL
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (3")
Deck / Options10' Wide Std; 28’ Length
Overall Length108' W / 30’ Deck; 84’ W / Jeep & Big Neck Stacked On Deck
Back-End Options60” Axle Spreads
Deck Width10' Wide Std
Deck Height27" estimate only
Options
DeckingApitong (3")
GooseneckSmall Neck 9'w/2 pins or11' w/3 pins; Spare Tire Bracket; Tool Box
Deck / OptionsSpecial Length Optional [30’ Shown]; Pin Joint For Deck Extension; Tool Box; Excavator Tray; Auxiliary Lighting Sockets [Front & Rear Of Deck]; Outriggers (18) Heavy Duty 3"; 2’ Front Loading Ramps / Steel / Aluminum
Brakes19.5 Air Disc (Anti-Lock)
Tires11R 22.5; Auto Air Inflation System
WheelsAluminum, 10 Hole Stud Pilot W/Drum Brakes; Aluminum, 10 Hole Hub Pilot W/Disc Brakes
PaintYour color
Back-End OptionsDrop Fenders [Shown]; Pin Joint For Deck Extension
Gooseneck
GooseneckMechanical Detachable 21’-6”' Big Neck; Mechanical Detachable 8' STD Short Neck
Running Gear
SuspensionAir Ride
Axles25,000 lb Oil Bath
Brakes16-1/2 x 7” Drum Brake
Tires275/70 R22.5 Continental
WheelsSteel Disc, 10 Hole Stud Pilot
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Weight
Weight70,800 +/-3% Estimate; W / 30’ Deck And Pin Joint
