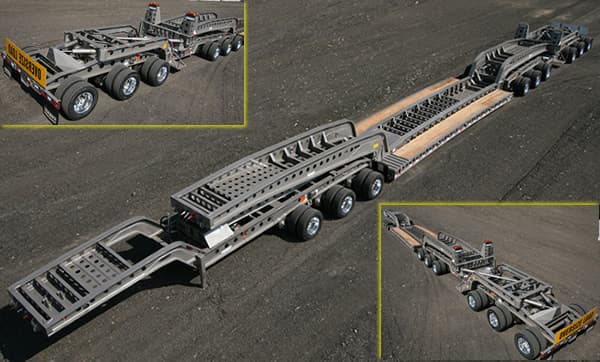

85 Ton Steerable Trailer 3+3+3
Capacity
85 Ton
Deck Height
28"
Gooseneck
Mechanical Detachable
Overall Length112 ft
Empty Weight76,800 lbs
Full Specifications
Construction
Construction100% A514 T-1 STEEL
Steering Dolly2 / 50 Ton Hydraulic Rams; 24" Lift; Manual Steering Capabilities With Kohler 25 HP Electric / Pull-start Hydraulic System
Paint2 Coats Primer & Paint / White STD
Dimensions
DeckingDouglas fir (3")
Overall Length112’ With 28’ Deck
Flat Deck Height33" Empty estimates only
Drop Side Height28" Empty estimates only
Width10' STD
Options
DeckingApitong (3")
Steering DollySpare Tire Brackets
BrakesAir Disc (Anti-Lock)
TiresAuto Air Inflation System
WheelsAluminum, 10 Hole Hub Pilot
PaintYour color
JeepDetachable Neck / Fixed Neck; Set-Up For Wet Kit On Tractor
Gooseneck
GooseneckMechanical Detachable
Running Gear
SuspensionRubber Bushed Walking Beam; 60” Axle Spreads
Axles25,000 lb Oil Bath
BrakesS Cam drum brakes
Tires265/70R x 19.5 Continental
WheelsSteel Disc, 10 Hole Hub Pilot
Electrical
LightingSealco Modular Sealed Wiring System; LED Lights
Hydraulics
Jeep2 / 50 Ton Hydraulic Rams; 24" Lift; Kohler 25 HP Electric / Pull-start Hydraulic System
Weight
Estimated Weight76,800 Lb With 30’ Dropside Deck
Capacity
Capacity85 Ton
