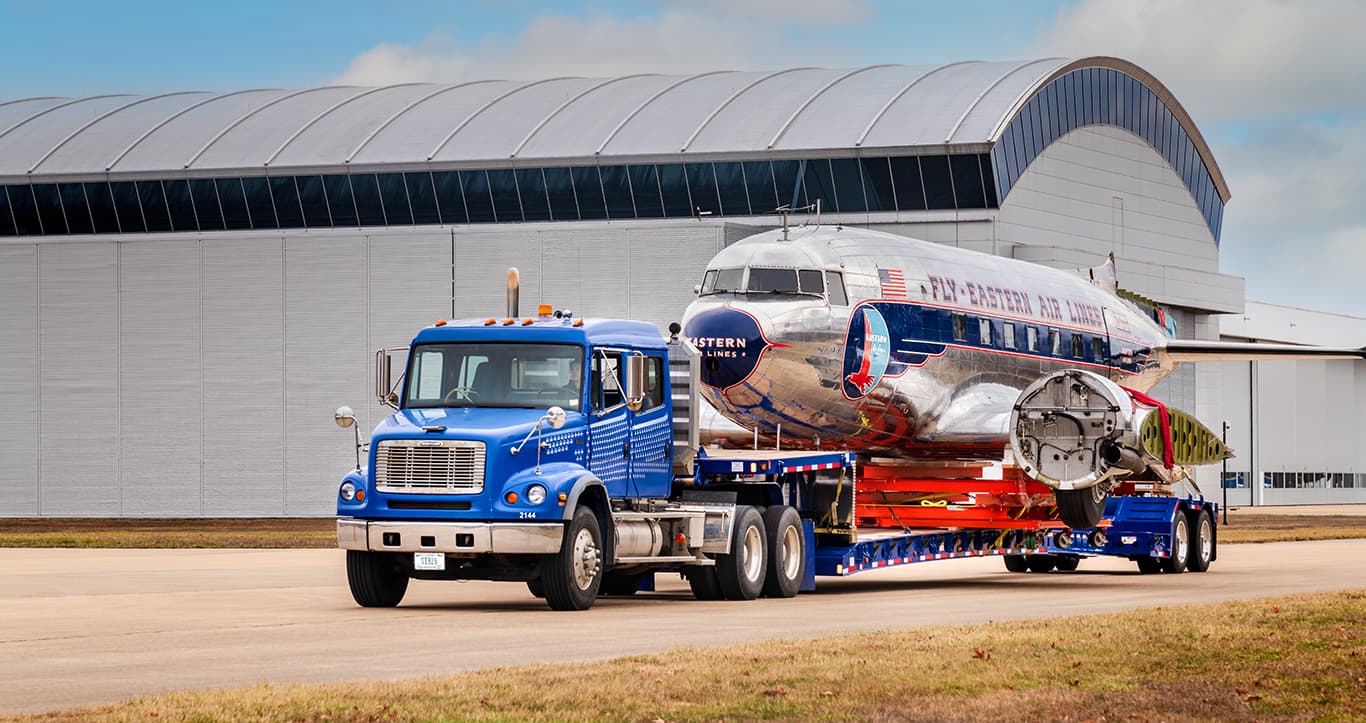

Fontaine Trailer
Magnitude 55H DSR
Workhorse Series
Capacity
55 Ton
Deck Height
14.5"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
Full Specifications
Capacity
Standard SpecificationsCapacity55 tons in 12-foot length with 4 axle close coupled or single axle stinger - GAWR and GVWR determine legal payloadsLoad base12-foot rigid 2-point load centered in deck areaTrailerLength:Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:DSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 22 inches at main beams with 6 inches ground clearanceFlooring:1.5 inch nominal apitong - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard tons
Capacity55 tons in 12-foot length with 4 axle close coupled or single axle stinger - GAWR and GVWR determine legal payloadsLoad base12-foot rigid 2-point load centered in deck areaTrailerLength:Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:DSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 22 inches at main beams with 6 inches ground clearanceFlooring:1.5 inch nominal apitong - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard tons
55 tons in 12-foot length with 4 axle close coupled or single axle stinger - GAWR and GVWR determine legal payloadsLoad base12-foot rigid 2-point load centered in deck area
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
Load base12-foot rigid 2-point load centered in deck area
TrailerLengthWidth:
DesignHydraulic removable non ground bearing design
Swing radius102 inches (11 feet 11 inches overall gooseneck length)
DeckDeck typeDSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 22 inches at main beams with 6 inches ground clearanceFlooring:1.5 inch nominal apitong - side rails only
Deck typeDSR
Flooring1.5 inch nominal apitong - side rails only
BogieDeck to bogie connectionFixedRear bogie height:41 inchesDesign:Covered Rear Bogie:
Deck to bogie connectionFixed
Rear bogie height41 inches
Gooseneck
GooseneckDesignHydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)
Dimensions
Deck width8' 6" or 9" ft
Loaded deck height/clearance14.5 inches at side rails, 22 inches at main beams with 6 inches ground clearance
Axles
AxlesStandard trailer axles3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"
Standard trailer axles3
Axle spread54.5" or 60" in
Tires & Wheels
TiresTire size275/70R 22.5 OEM Standard
Tire size275/70R 22.5 OEM Standard
