Jet Company

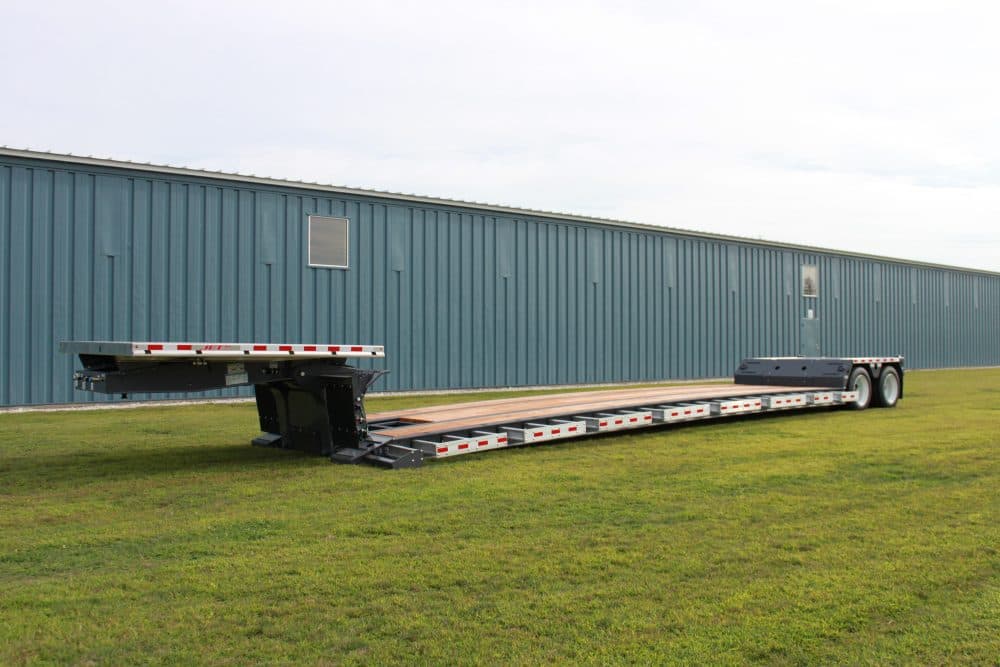

Jet 35T49-2 Detachable Gooseneck Lowboy
35 Ton Series
Capacity
35 Ton
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length30 ft
Overall Length49 ft
About This Trailer
Jet's high quality craftsmanship and attention to detail puts our Detachable Gooseneck Lowboy trailers in a class of their own. Learn More
Full Specifications
Specifications
Capacity – 15' Maximum load70,000 lbs
Trailer Length49'
Trailer Width102”
Trailer Main Deck Length30'
Trailer Main Beam Height (typical)12”
King Pin Height48”
Swing Clearence85.5”
Ground Clearance8”
SuspensionTandem Axle Air Ride
Axle Configuration49” Center Spacing
Wheels(8) 22.5” x 8.25” Steel
Tires(8) 255/70R 22.5 radials
Brakes16 1/2" x 7", 2S1M ABS
Jet Company

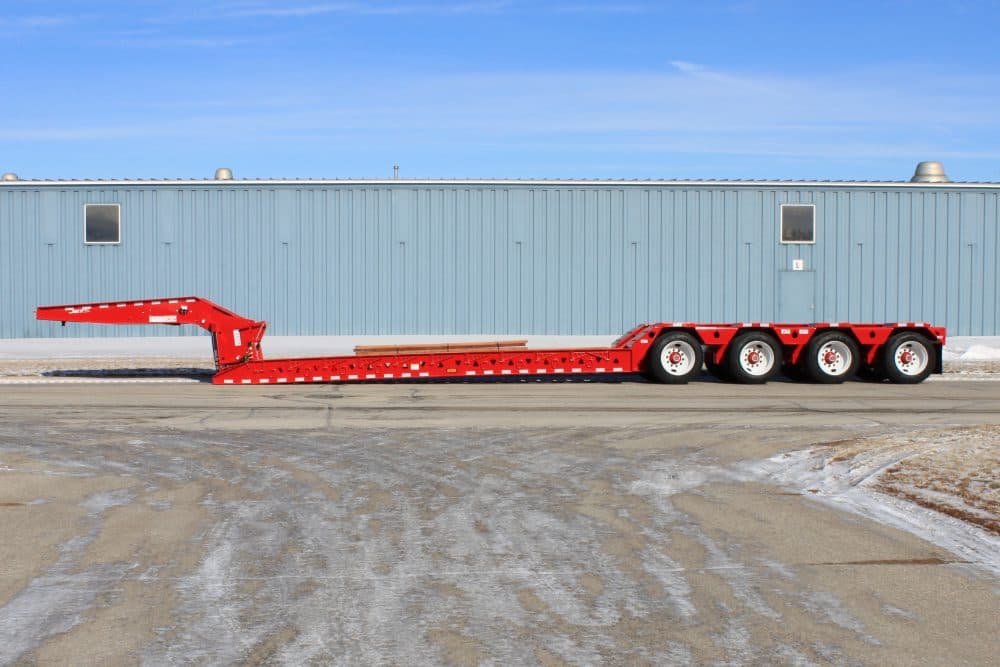

Jet Company builds 35- and 51-ton detachable gooseneck lowboy trailers in Humboldt, Iowa.
Humboldt, Iowa
