Kaufman Trailers

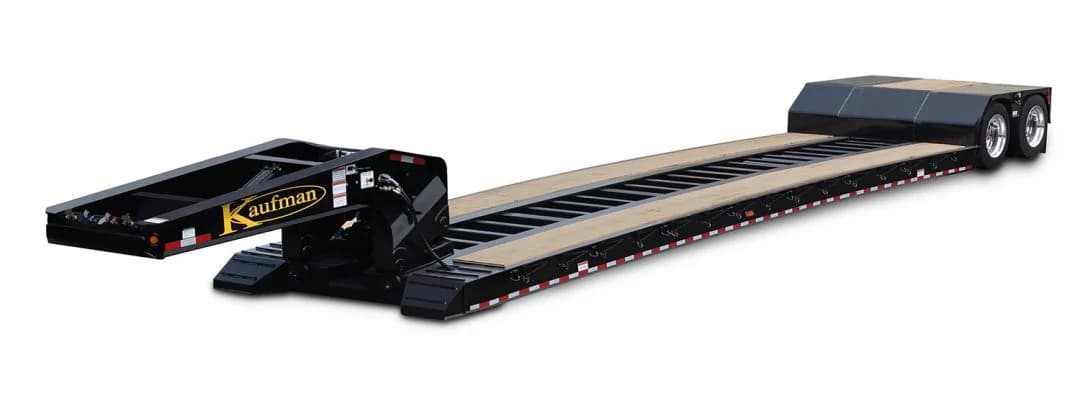

30 Ton Detachable Gooseneck Trailer
Commercial Series
Capacity
30 Ton
Deck Height
20"
Axles
2-Axle
Gooseneck
Non Ground Bearing
Deck Length29 ft
GVWR77,500 lbs
Full Specifications
Capacity
G.V.W.R.77,500 lbs. (Capacity 60,000 lbs. in 16 ft. span or greater)
Dimensions
Deck Length29' well standard. Additional Optional Lengths
Deck Height20" (fully loaded)
Deck Width102" (Expandable to 126" with outriggers)
Lower Deck29' well length
Electrical
ElectricalSealco US made sealed wiring harness, lifetime LED lights, amber strobe kit standard
Construction
FrameFour cambered main beams, fabricated with 100 KSI (T1) and 80 KSI high tensile steel.
Side Rail12" Fabricated
Floors2" oak flooring
ToolboxLockable Lid Toolbox
RampsFixed Front Ramps (See Additional Options)
Tie DownsForged D-rings
General
FendersLoad bearing high tensile steel fenders over the tires.
Running Gear
BrakesAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
WheelsAll wheel 16.5" x 7" air brakes, automatic slack adjusters, and 4S/2M ABS
Tires255/70 R22.5 LRH
Axles2-25,000 lb. axles (5" round, 5/8" wall thickness)
SuspensionAir ride suspension
Gooseneck
TongueHydraulic, removable, non-ground bearing gooseneck with 3 position adjustable load blocks and 83" - 107" available swing clearances. Comes standard set-up for wet line.
CouplerSAE 2" Kingpin (16" Kingpin Setting)
Finish
FinishSherwin Williams Premium Acrylic Urethane over a Premium Two Part Epoxy Primer
