Murray Trailers

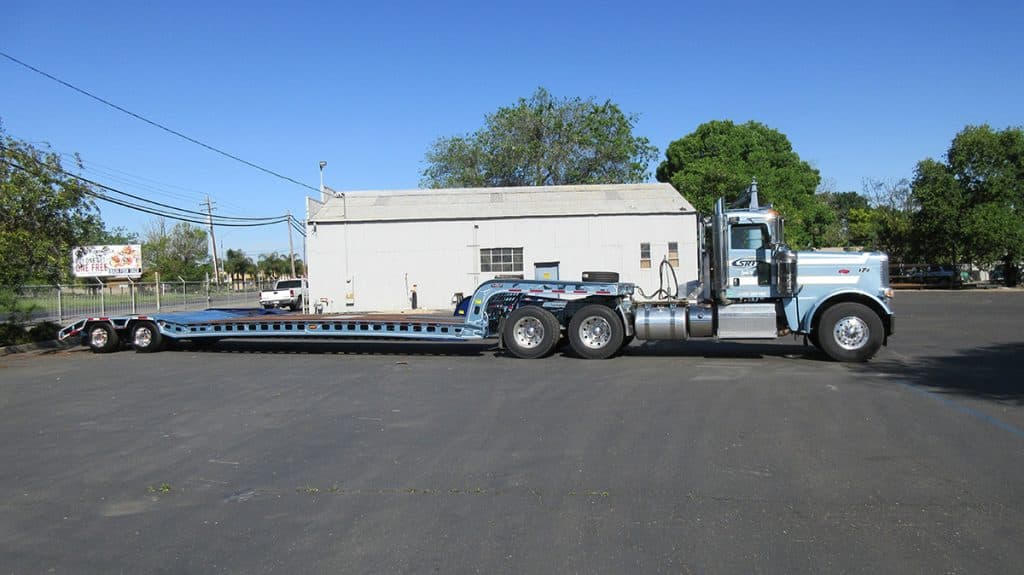

Easy Load
Low Profile 32-Ton, 8-Tire Trailer
Capacity
32 Ton
Deck Height
27"
Axles
2-Axle
Gooseneck
Mechanical Detachable
Deck Length21.5 ft
Overall Length43.3 ft
GVWR80,000 lbs
About This Trailer
Low Profile 32-Ton, 8-Tire Trailer. Guaranteed over-the-back loading
Full Specifications
Options
Deck Lengths 12’ to 24’Optional
16” Longer GoooseneckOptional
Second kingpinOptional
Air operated “RoboLink” & Deck Latch release (US PAT #8752854, 9272591)Optional
Sliding OutriggersOptional
Disc brakes with ABSOptional
Full wheel coversOptional
Fire District Code 3 LightingOptional
Lockable tool boxes in wide neckOptional
Front & rear loading rampsOptional
”D” RingsOptional
OutriggersOptional
Chain boxes w/ optional lidsOptional
Excavator deck well or panOptional
Rear Diamond Ramp storage w/ air lockOptional
Spare tire with lockable mountOptional
Electric winch on gooseneckOptional
Documents
Trailer Brochure (PDF)https://www.murraytrailer.com/wp-content/uploads/2020/11/EasyLoad-Brochure-200826.pdf
Trailer Spec Sheet (PDF)https://www.murraytrailer.com/wp-content/uploads/2020/11/EasyLoad-23-4.pdf
Construction
Construction130 KSI/100 KSI yield steel
Decking3” Apitong outside, 2” Douglas Fir inside
PaintDuPont IMRON ELITE
Running Gear
Axles2 Axles at 20,000 lbs. each
SuspensionAir-Ride Suspension w/ dump valve & scaling guage
Wheels8-hole, hub piloted aluminum
Tires235/75R x 17.5 – Hankook or Continental
Capacity
Capacity32 Tons
GVWR80,000 lbs.
Gooseneck
GoosenecksMechanical Removable wide neck with a single kingpin
Dimensions
Deck Height27” nominal center of deck (dependent on 5th wheel height)
Over-front loading10”
Over-rear loading34”
Overall Length43’-4” with standard 21’-6” deck, gooseneck, & tail
