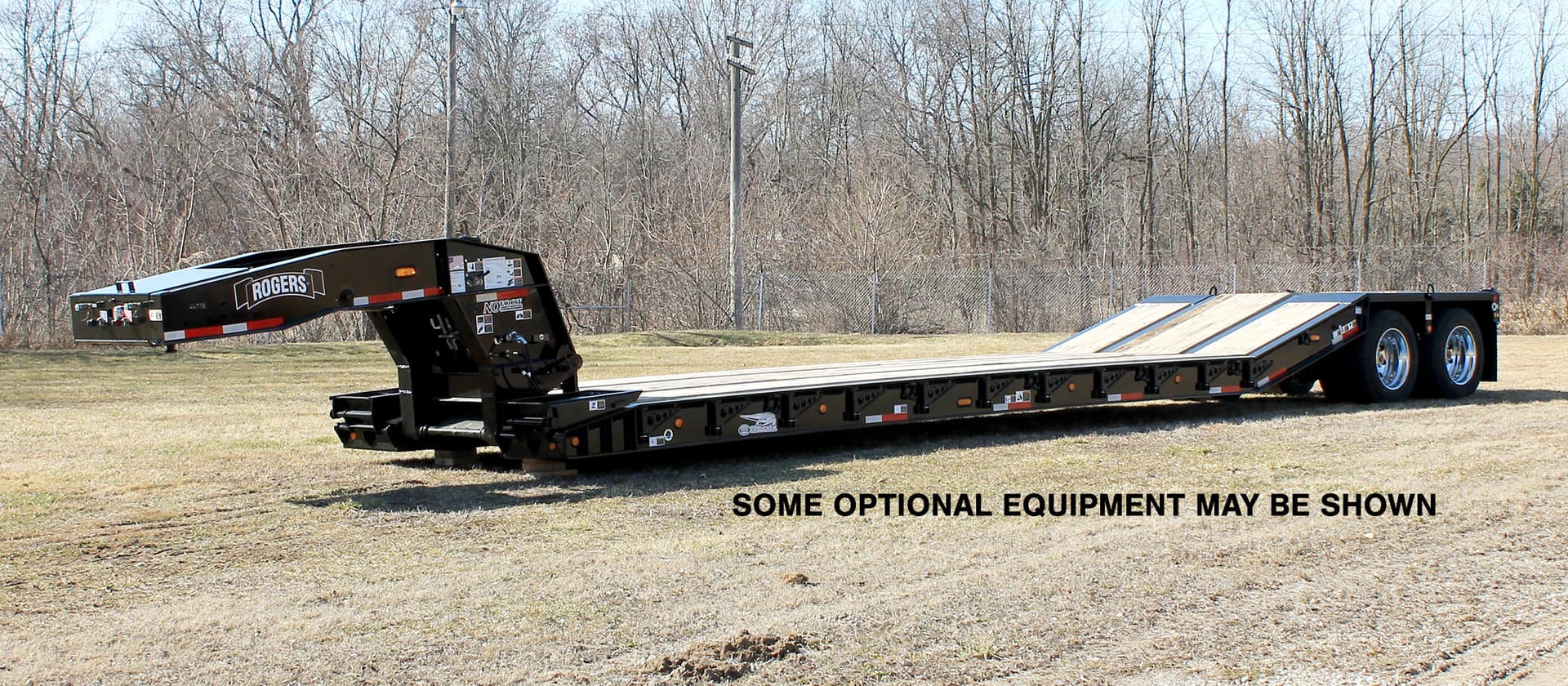

ROGERS CR35GR trailer
Rogers Brothers

CR35GR 35-Ton Detachable Gooseneck

Ultima Trailers Series

Capacity

35 Ton

Deck Height

20"

Axles

2-Axle

Gooseneck

Hydraulic Detachable

Deck Length24 ft

About This Trailer

The closest to a carry-all lowboy, the ROGERS CR35GR is built for pavers and rollers, but can haul excavators, bulldozers and other machines as well. The exclusive "Croucher" low front provides safe and stable loading; and the patented "No Foot" Direct-Push detachable gooseneck easily lifts the trailer. Standard features: Patented "No Foot" Direct-Push style gooseneck; Exclusive "Croucher" low, tapered front with concealed beam hooks; Front folding ramps; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Ultima deck design with 16" main beams and 12" side beams; Side beam flange reinforcing os first 6'-0" of deck; Full 2" air-dried oak decking; Center boards installed; Total (22) removable swinging side brackets; Total (12) bent lashing D's; 16º "Gentle Riser" includes:oak-covered riserReinforced 1/4" tread plate wheel coversOutriggers between wheels; oak-covered riser; Reinforced 1/4" tread plate wheel covers; Outriggers between wheels; Level rear extension with rear impact guard; US DOT-approved rubber-mounted LED lights with sealed wiring and 7-wire socket; Rogers Red or Black industrial enamel finish coat: (hover to see samples); Flag Holders.

Full Specifications

Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length15'-0"
Dimensions
Deck Length24'-0"
Loaded Deck Height20"
Deck Width8'-6"
Deck StyleGentler Riser
Running Gear
Axles2 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
