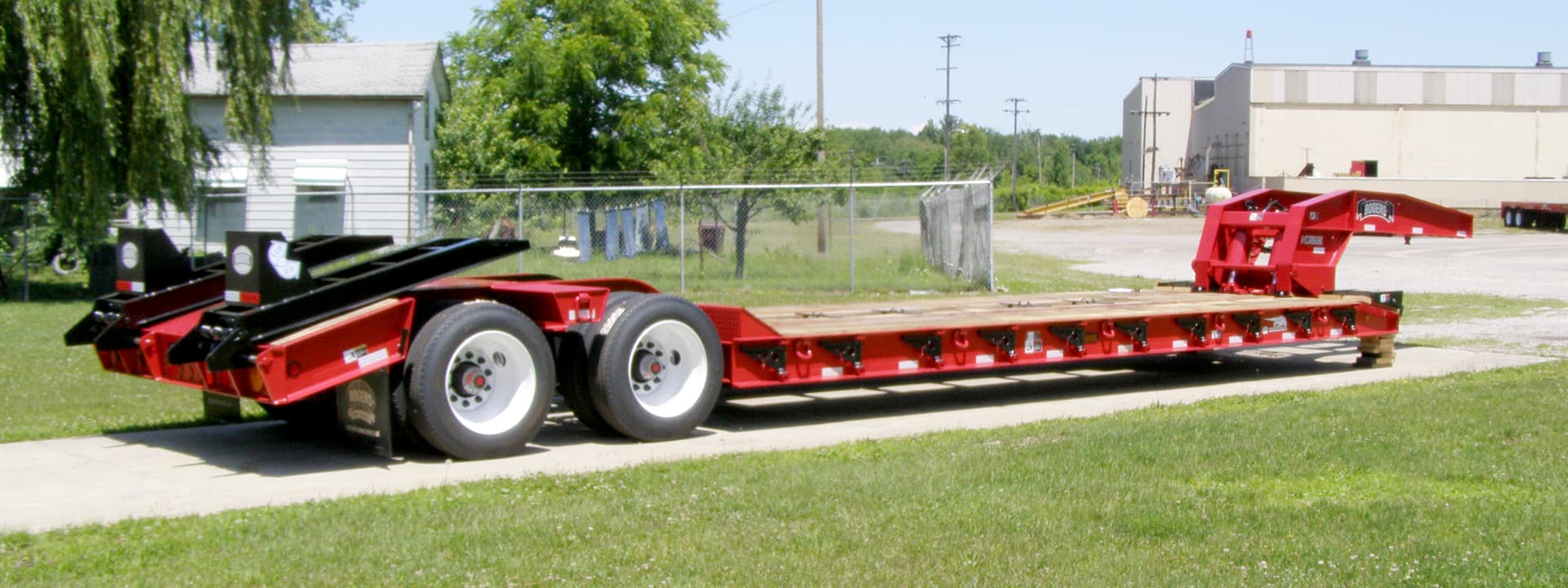

ROGERS CR35RS trailer
Rogers Brothers

CR35RS 35-Ton Detachable Gooseneck

Ultima Trailers Series

Capacity

35 Ton

Deck Height

23"

Axles

2-Axle

Gooseneck

Hydraulic Detachable

Deck Length22 ft

About This Trailer

ROGERS CR35RS is 35-ton capacity lowboy trailer on air ride suspension with a beavertail, so it can be loaded from either the back or the front for maximum versatility. Pictured Option: Swinging side brackets, manual rear ladder-style ramps. Standard features: Patented "No Foot"® Direct-Push style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Exclusive "Croucher"® low, tapered front with concealed beam hooks; Side channel flange reinforcing of first 6'-0" of deck; Full 2" air-dried oak decking; no center boards; Total (20) side bracket bearings only; Total (10) bent lashing D's; Arch-type rear frame with sloped bridge ramps; Trunnions between wheels; Flag holders; Oak-covered beavertail with 14º slope, smooth plate between wheels; LED light package: rubber-mounted lights with sealed wiring and 7-wire socket; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length11'-0"
Dimensions
Deck Length22'-0"
Loaded Deck Height23"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront & Rear Loading

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
