ROGERS CR50 trailer
Rogers Brothers

CR50 50-Ton Detachable Gooseneck

Ultima Trailers Series

Capacity

50 Ton

Deck Height

20"

Axles

3-Axle

Gooseneck

Hydraulic Detachable

Deck Length24 ft

About This Trailer

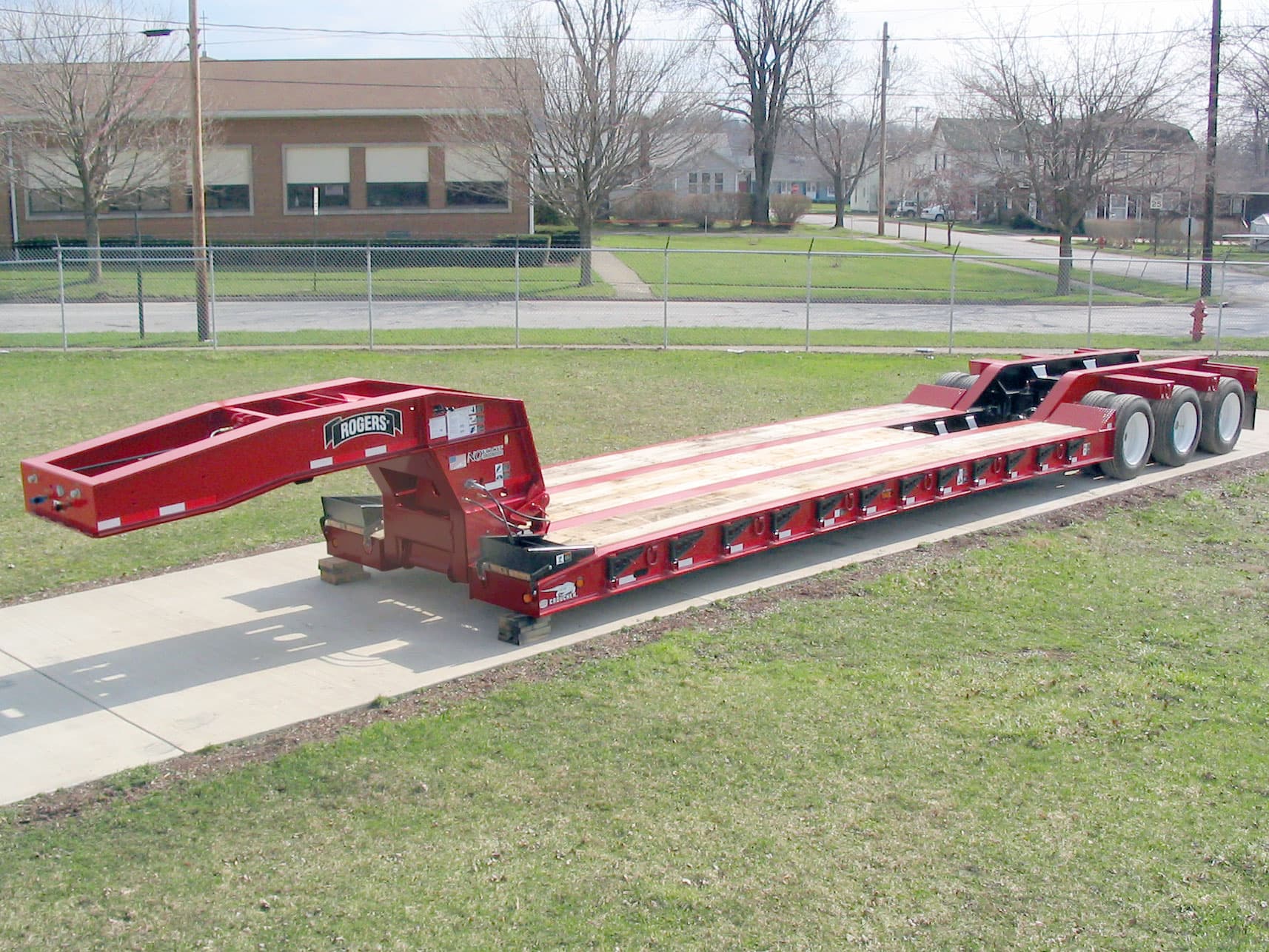

ROGERS® Ultima CR50 is the top of the line lowbed with an unmatched load concentration. Its low deck height with the "bucket pocket" and "boom trough" give better overhead clearance when hauling an excavator. Pictured Options: Center boards installed and front folding ramps. Standard features: "No Foot"® Tower style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with shoe; Hydraulic power source: Tractor PTO; Four-beam cambered frame design with 14" main beams; Exclusive "Croucher"® low, tapered front deck with concealed beam hooks; Side beam flange reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking; No center boards; Total (24) removable swinging side brackets; Total (16) bent lashing D's; "Bucket Pocket"; Arch-type rear frame with sloped bridge ramps; "Boom Trough"; Trunnions between wheels; LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Flag holders; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity50.0-ton
Concentrated Load100,000-pounds
Concentrated Load Length12'-0"
Dimensions
Deck Length24'-0"
Loaded Deck Height20"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
