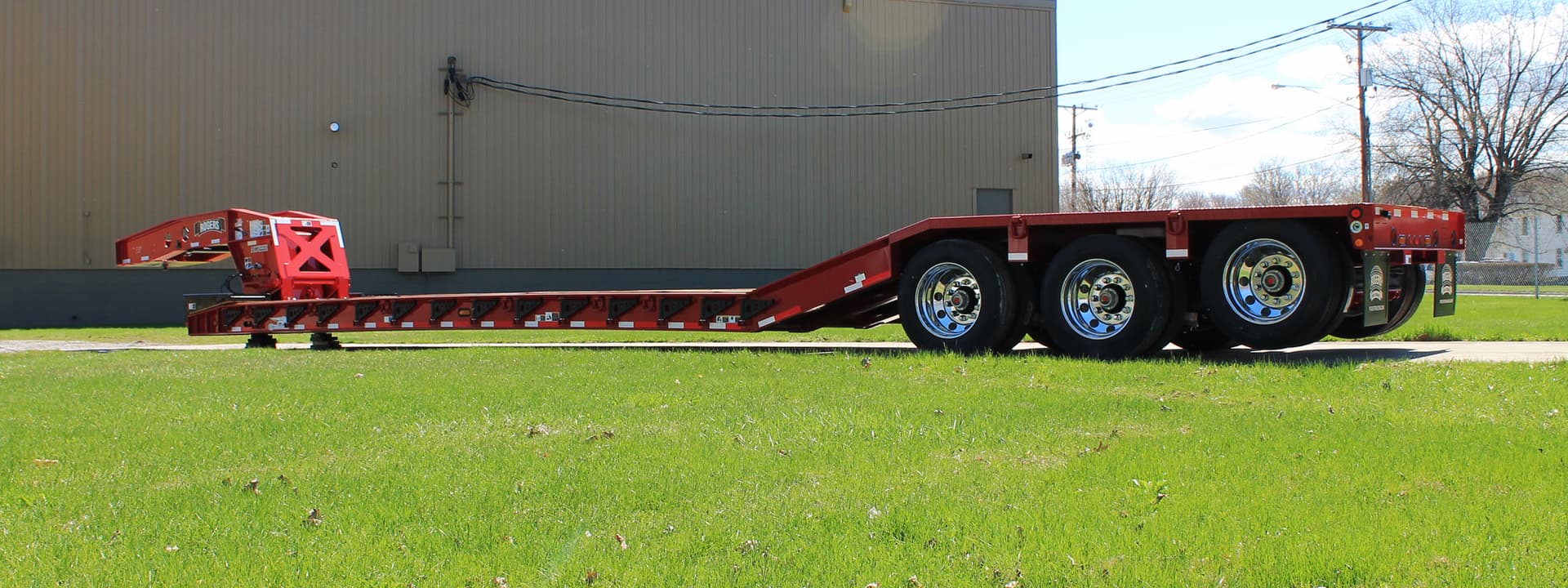

ROGERS CR50GR trailer
Rogers Brothers

CR50GR 50-Ton Detachable Gooseneck

Ultima Trailers Series

Capacity

50 Ton

Deck Height

20"

Axles

3-Axle

Gooseneck

Hydraulic Detachable

Deck Length25 ft

About This Trailer

The ROGERS CR50GR is a 50-ton capacity lowboy featuring the often imitated "Gentle Riser" deck style designed to easily load multiple machines. It has the exclusive "Croucher"® low, tapered front end; the "No Foot"® Tower style detachable gooseneck; and air ride suspension. Standard features: "No Foot"® Tower style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Ultima four-beam cambered design with 14" main beams; Exclusive "Croucher"® low, tapered front with concealed beam hooks; Front folding ramps; Side beam flange reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking; Center boards installed; Total (24) removable swinging side brackets; Total (16) bent lashing D's; "Bucket pocket"; 16® "Gentle Riser" includes:Wood-covered riserReinforced 1/4" tread plate wheel coversOutriggers between wheels; Wood-covered riser; Reinforced 1/4" tread plate wheel covers; Outriggers between wheels; LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Cable-pull remote air tank drain; Safety flag holders; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity50.0-ton
Concentrated Load100,000-pounds
Concentrated Load Length15'-0"
Dimensions
Deck Length25'-0"
Loaded Deck Height20"
Deck Width8'-6"
Deck StyleGentler Riser
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
