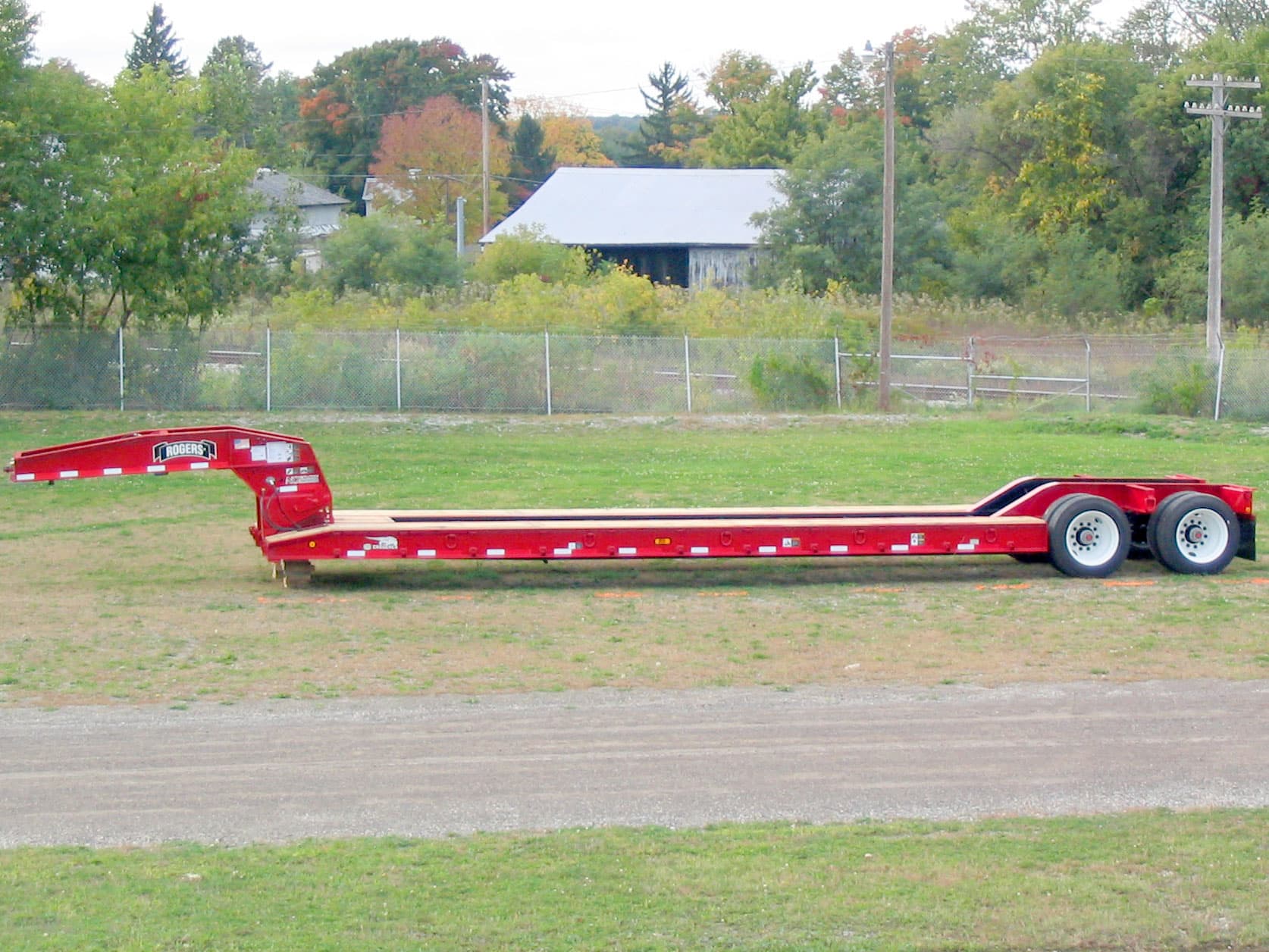

ROGERS CY35 trailer
Rogers Brothers

CY35 35-Ton Detachable Gooseneck

Ultima Trailers Series

Capacity

35 Ton

Deck Height

22"

Axles

2-Axle

Gooseneck

Hydraulic Detachable

Deck Length24 ft

About This Trailer

CY35 is the Century Series 35-ton capacity trailer with the "No Foot"® Direct-Push style detachable gooseneck. This durable lowbed's capacity is based on the concentrated load in 2/3rd of the deck. Standard features: Patented "No Foot"® direct-push style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle shoe; Hydraulics power source: tractor PTO; Main beam / side channel deck design; Exclusive Croucher low, taperd front with concealed beam hooks; Side channel reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking / No center boards; Total (22) bracket bearings for removable side brackets; Total (10) bent lashing D's; Arch-type rear frame with wood decking to the tires; Outriggers between wheels; "Boom trough" in rear frame; Flag holders; US DOT-approved rubber-mounted LED lights with sealed wiring and 7-wire socket; Epoxy primer; ROGERS Red or Black industrial enamel finish.

Full Specifications

Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length16'-0"
Dimensions
Deck Length24'-0"
Loaded Deck Height22"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
