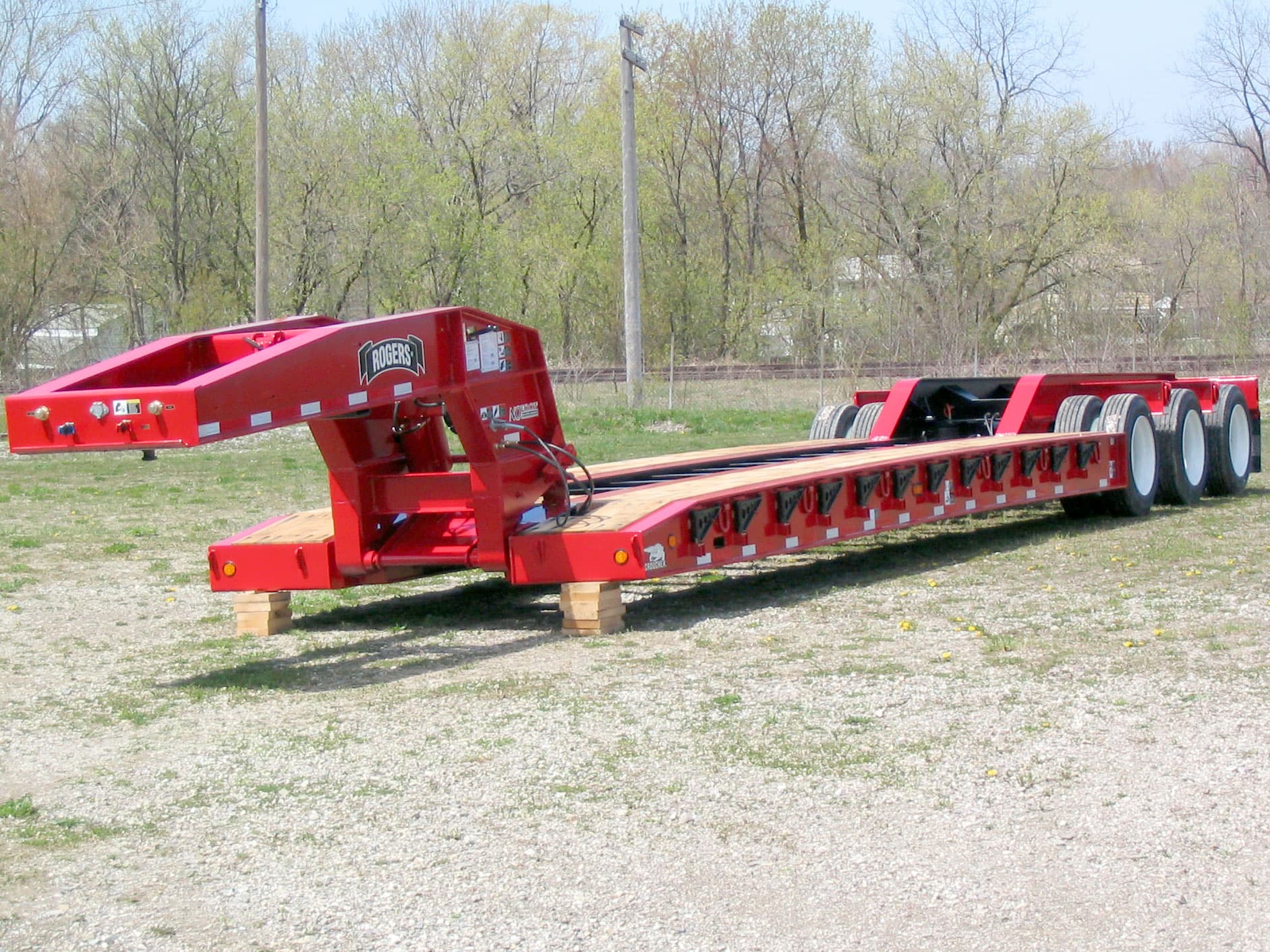

ROGERS CY50 trailer
Rogers Brothers

CY50 50-Ton Detachable Gooseneck

Ultima Trailers Series

Capacity

50 Ton

Deck Height

22"

Axles

3-Axle

Gooseneck

Hydraulic Detachable

Deck Length24 ft

About This Trailer

CY50 is the ROGERS® Century 50-ton capacity detachable gooseneck lowbed trailer. It features the exclusive "Croucher"® tapered front end with concealed beam hooks for unobstructed loading. Standard features: Patented "No Foot"® Direct-Push style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Four beam cambered deck design; Exclusive "Croucher"® low, tapered front with concealed beam hooks; Side beam flange reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking; No center boards; Total (12) bent lashing D's; Total (24) side brackets; Arch-type rear frame with oak decking to tires; Outriggers between wheels; "Boom Trough"; LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity50.0-ton
Concentrated Load100,000-pounds
Concentrated Load Length16'-0"
Dimensions
Deck Length24'-0"
Loaded Deck Height22"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
