Rogers Brothers
FG121L103-8X 121-Ton Fixed Gooseneck
Custom Series Series
Capacity
121 Ton
Axles
8-Axle
Gooseneck
Fixed
Deck Length19.7 ft
About This Trailer

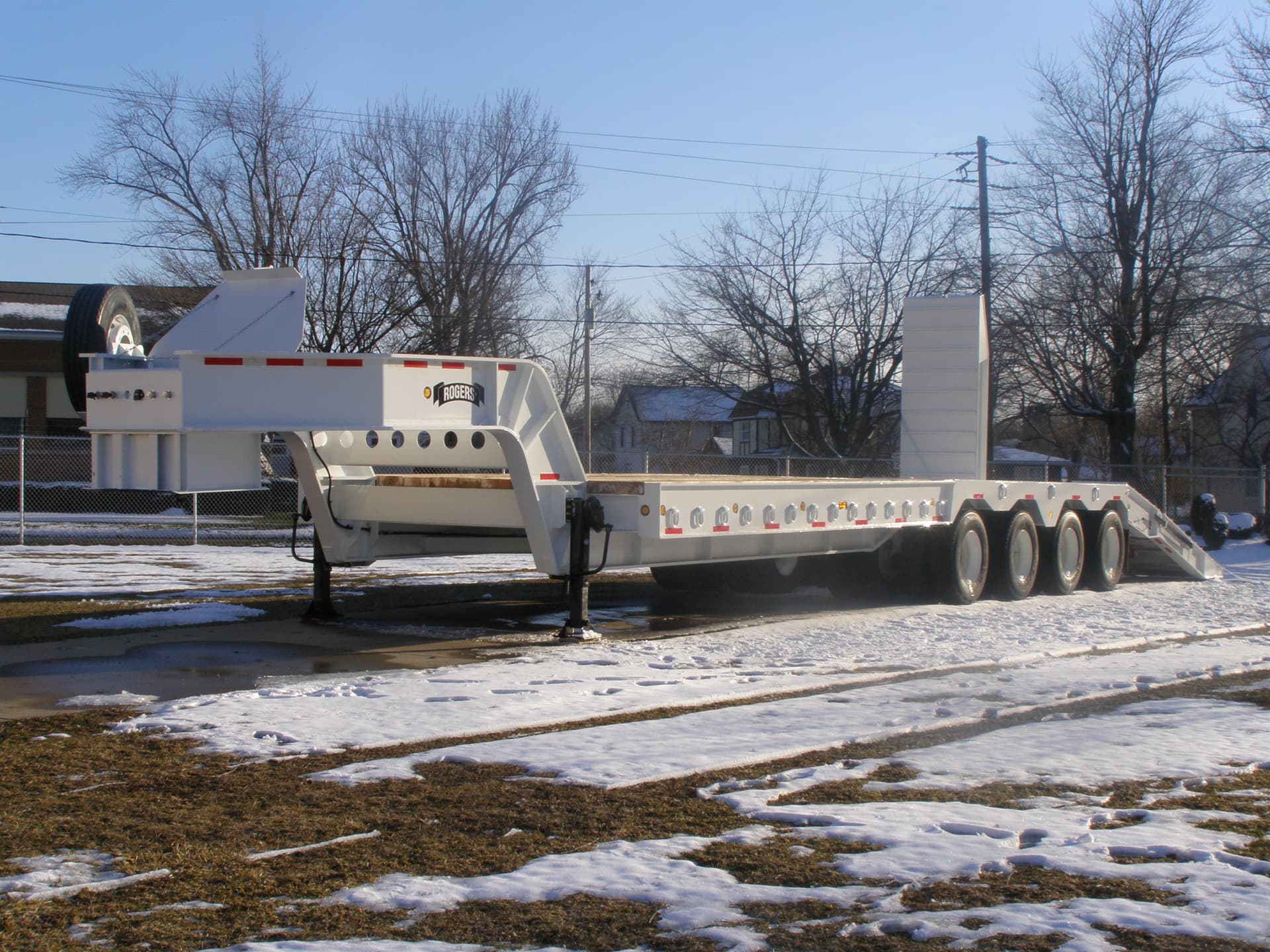

This fixed gooseneck trailer was built for use in a copper mine in South America. The hydraulic-powered rear ramps, covered with 1/2" steel plate and traction bars, combine with hydraulic-powered support legs to offer improved traction for loading over the beavertail. The trailer was manufactured for use in a South American copper mine.
Full Specifications
Capacity
Capacity121.0-ton
Concentrated Load242,508-pounds
Concentrated Load Length20'-0"
Dimensions
Deck Length19'-8"
Deck Width13'-0"
Deck StylePlatform
Running Gear
Axles8 axles
Axle Type33,069 lb capacity axles with grease-filled bearings
Suspension132,277 lb capacity trunnion style suspensions
Tires315/80R22.5(L) low-profile tubeless radial
Wheels22.5 x 9.00 10-hole steel disc
Brakes16 1/2" x 7" shoes (no ABS)
General
Trailer TypeFixed Gooseneck
Trailer UseRear Loading: Fixed Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
