Rogers Brothers
FG125-8XCSRS 125-Ton Fixed Gooseneck
Fixed Gooseneck Trailers Series
Capacity
125 Ton
Deck Height
60"
Gooseneck
Fixed
Deck Length42.7 ft
About This Trailer

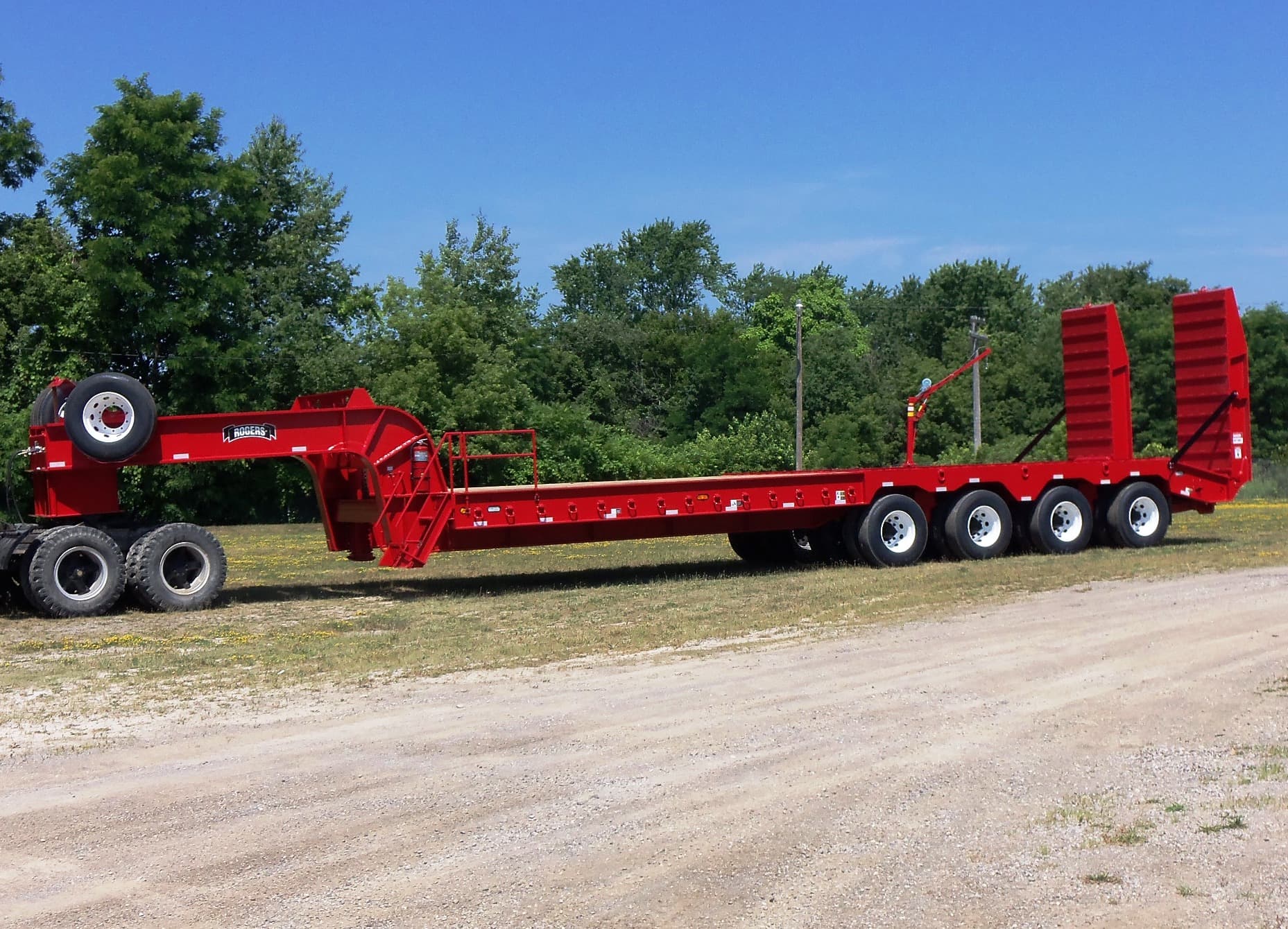

This 125-ton capacity trailer was custom designed to haul various types of mining equipment. The running gear on this fixed gooseneck trailer has 8 axles and a total of 32 tires.
Full Specifications
Capacity
Capacity125.0-ton
Concentrated Load220,462-pounds
Concentrated Load Length14'-0"
Dimensions
Deck Length42'-8"
Loaded Deck Height60"
Deck Width13'-0"
Deck StylePlatform
Running Gear
Suspension2x 80,000 kg capacity 4-axle cantilever (trunnion/walking beam) suspension unit
Tires315/80R22.5(L) low-profile tubeless radial
Wheels22.5 x 9.00 10-hole steel disc
General
Trailer TypeSpecialized
Trailer UseRear Loading: Fixed Gooseneck
