Rogers Brothers

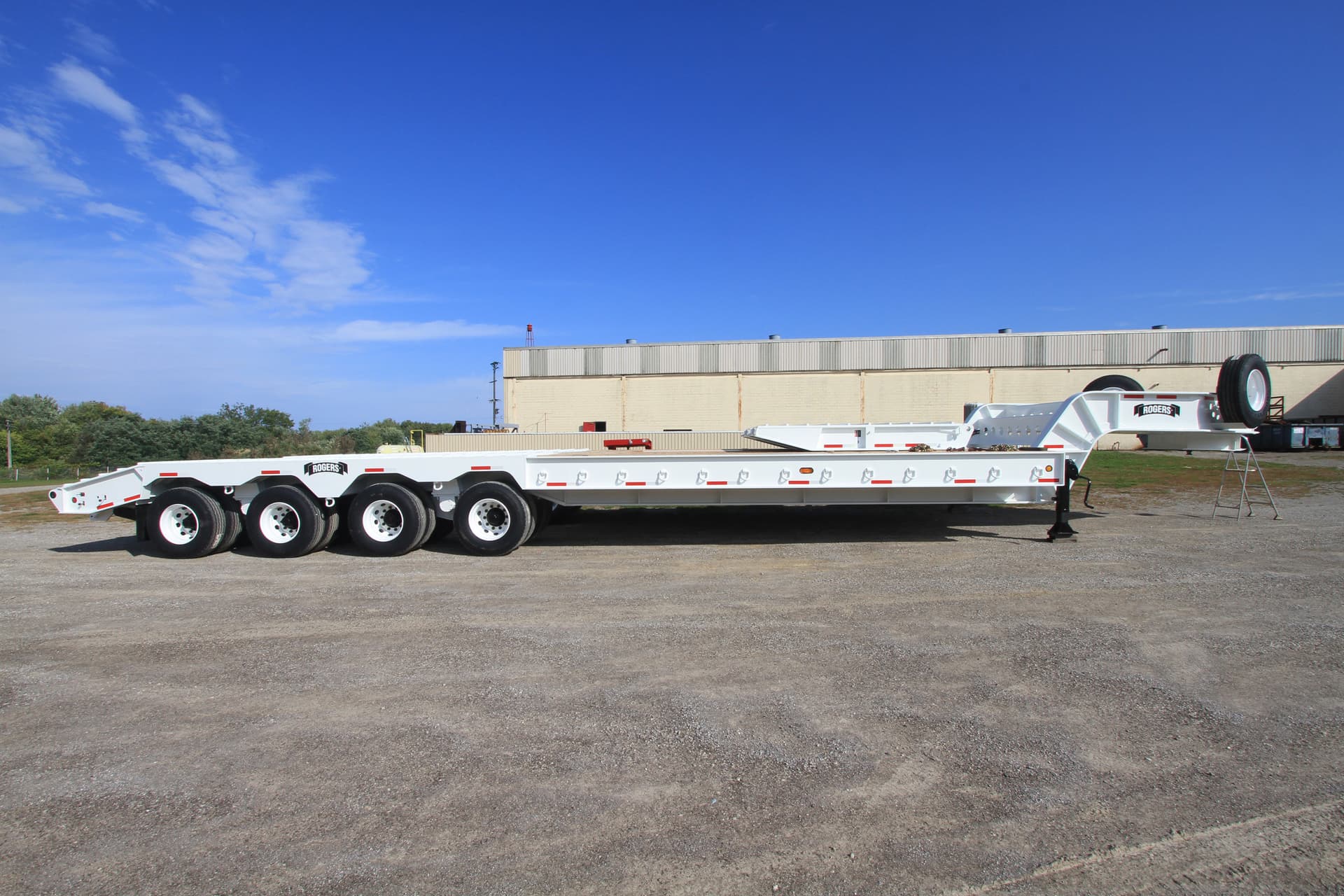

FG127L 127-Ton Fixed Gooseneck
Custom Series Series
Capacity
127 Ton
Axles
8-Axle
Gooseneck
Fixed
Deck Length23.7 ft
About This Trailer
This trailer was manufactured for a Canadian company that specializes in gold mining and exploration on four continents. The steel-covered beavertail and single-fold, hydraulic rear loading ramps with 1/2" plate and grouser bars offer improved traction to this rear-loading trailer.
Full Specifications
Capacity
Capacity127.0-ton
Concentrated Load253,532-pounds
Concentrated Load Length24'-0"
Dimensions
Deck Length23'-8"
Deck Width1'-4"
Deck StylePlatform
Running Gear
Axles8 axles
Axle Type33,069 lb capacity with oil-bathed bearings
Suspension132,277 lb capacity cantilever (trunnion) suspension
Tires315/80R22.5(L) low-profile tubeless radial
Wheels22.5 x 9.00 10-hole steel disc
Brakes16 1/2" x 7" shoes (no ABS)
General
Trailer TypeFixed Gooseneck
Trailer UseRear Loading: Fixed Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
