Rogers Brothers
FG35D-3XRS 35-Ton Fixed Gooseneck
Fixed Gooseneck Trailers Series
Capacity
35 Ton
Axles
3-Axle
Gooseneck
Fixed
Deck Length22 ft
About This Trailer

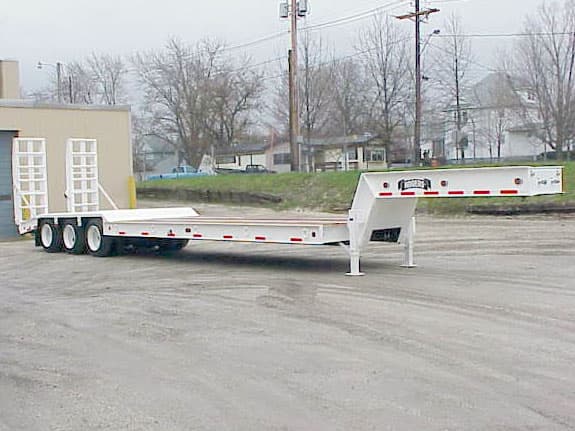

This 35-ton fixed gooseneck trailer has pin type landing gear, 22'-0" deck and hydraulic powered ladder-style ramps. Customer specified additional clearance lights on the sides of the deck and gooseneck, and ROGERS white color finish.
Full Specifications
Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length11'-0"
Dimensions
Deck Length22'-0"
Deck Width8'-6"
Deck StyleDouble Drop
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeSpecialized
Trailer UseRear Loading: Fixed Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
