Rogers Brothers
FG35L-RS 35-Ton Fixed Gooseneck
Fixed Gooseneck Trailers Series
Capacity
35 Ton
Axles
2-Axle
Gooseneck
Fixed
Deck Length22 ft
About This Trailer

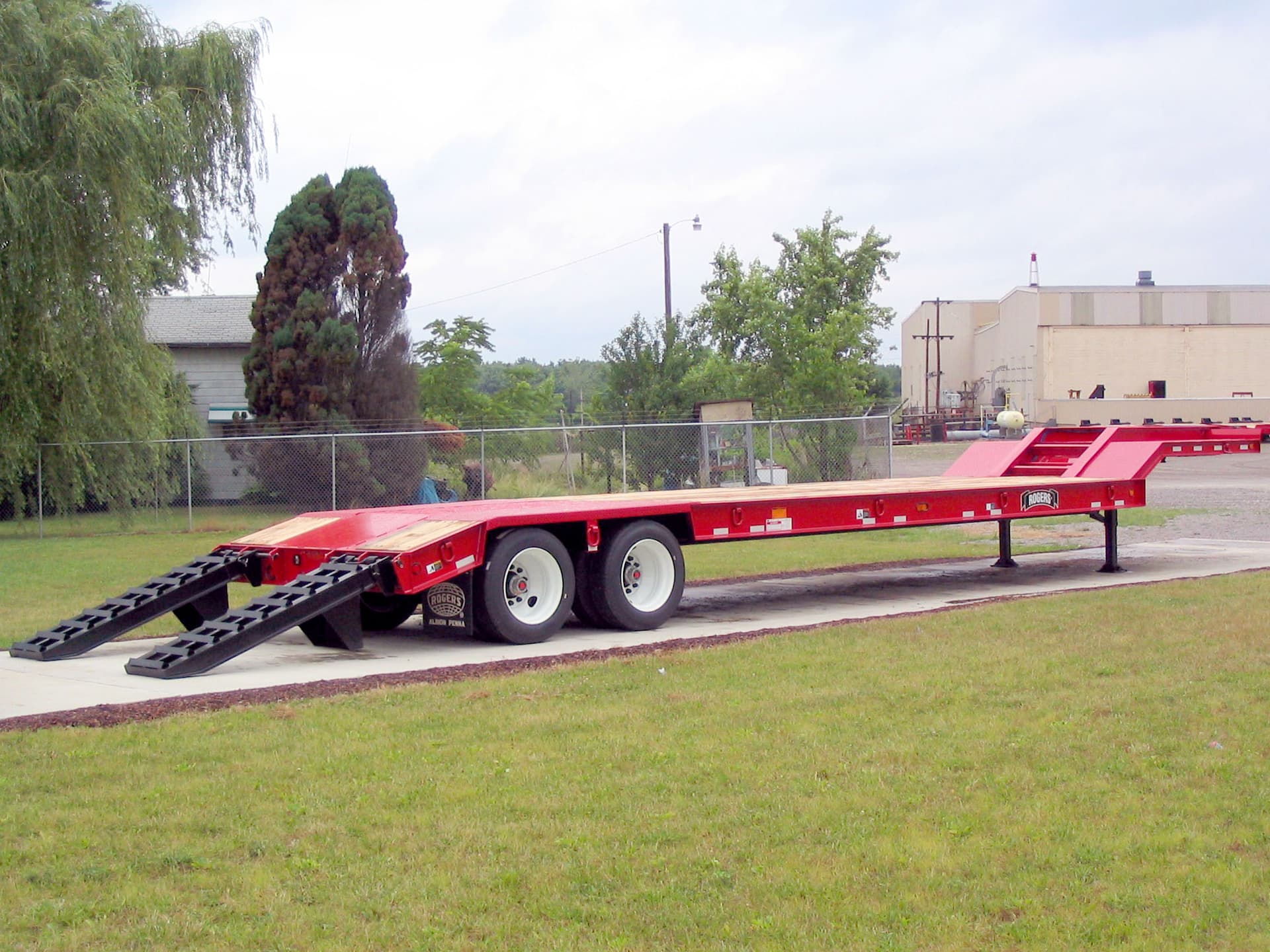

This FG35L-RS is a 35-ton capacity fixed gooseneck trailer equipped with rear ladder-style ramps, heavy-duty spring suspension, two-speed landing gear and and motor grader ramps on the gooseneck.
Full Specifications
Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length15'-0"
Dimensions
Deck Length22'-0"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type22,500 lbs. capacity with oil-bathed bearings
Suspension50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeFixed Gooseneck
Trailer UseRear Loading: Fixed Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
