Rogers Brothers

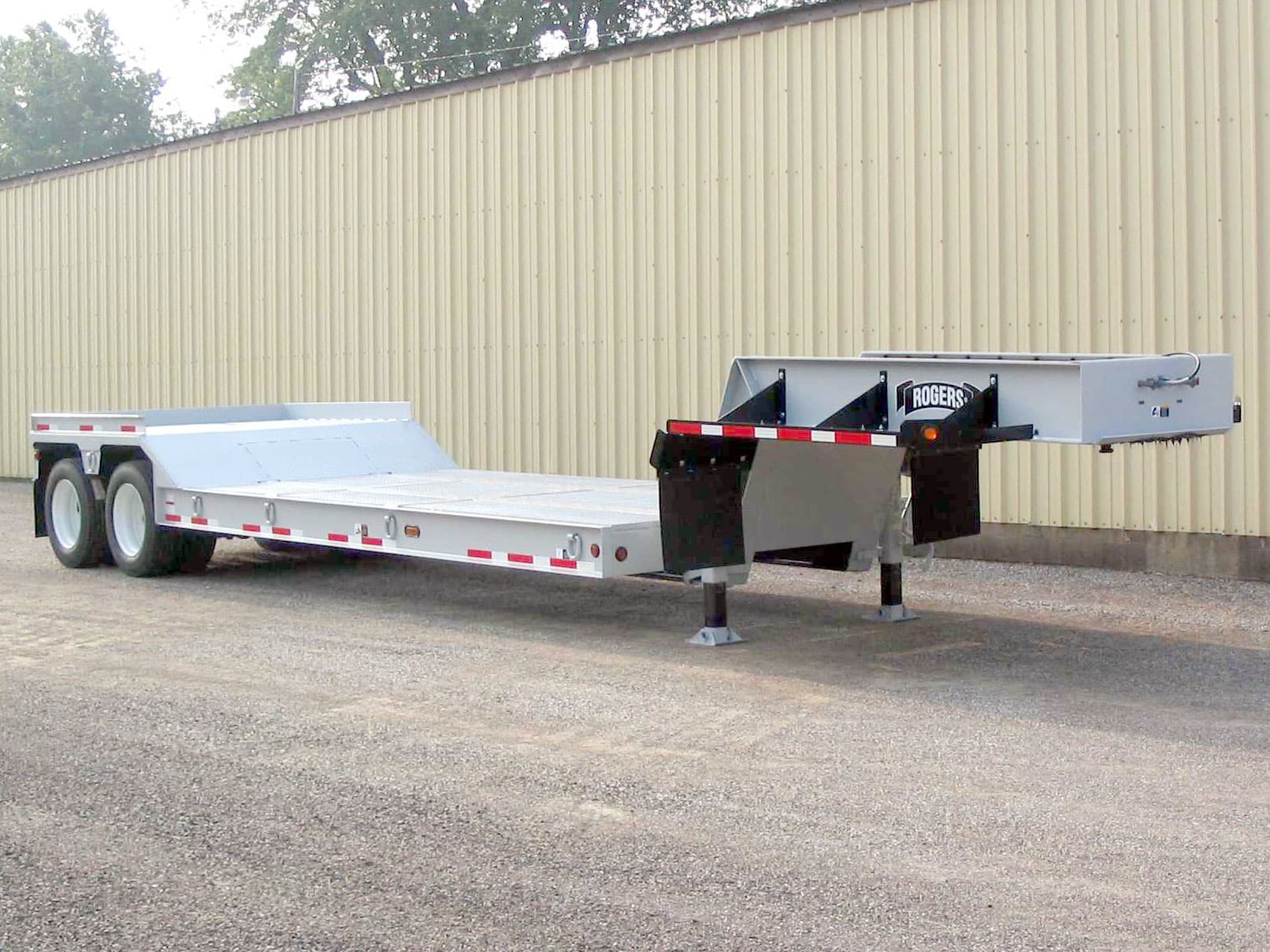

FG40D-2X 40-Ton Transformer Trailer
Fixed Gooseneck Trailers Series
Capacity
40 Ton
Axles
2-Axle
Deck Length18 ft
About This Trailer
This 40-ton lowboy with a standard-width gooseneck was built for a transformer.
Full Specifications
Capacity
Capacity40.0-ton
Concentrated Load80,000-pounds
Concentrated Load Length12'-0"
Dimensions
Deck Length18'-0"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeSpecialized
Trailer UseElectric Transformer
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
