Rogers Brothers

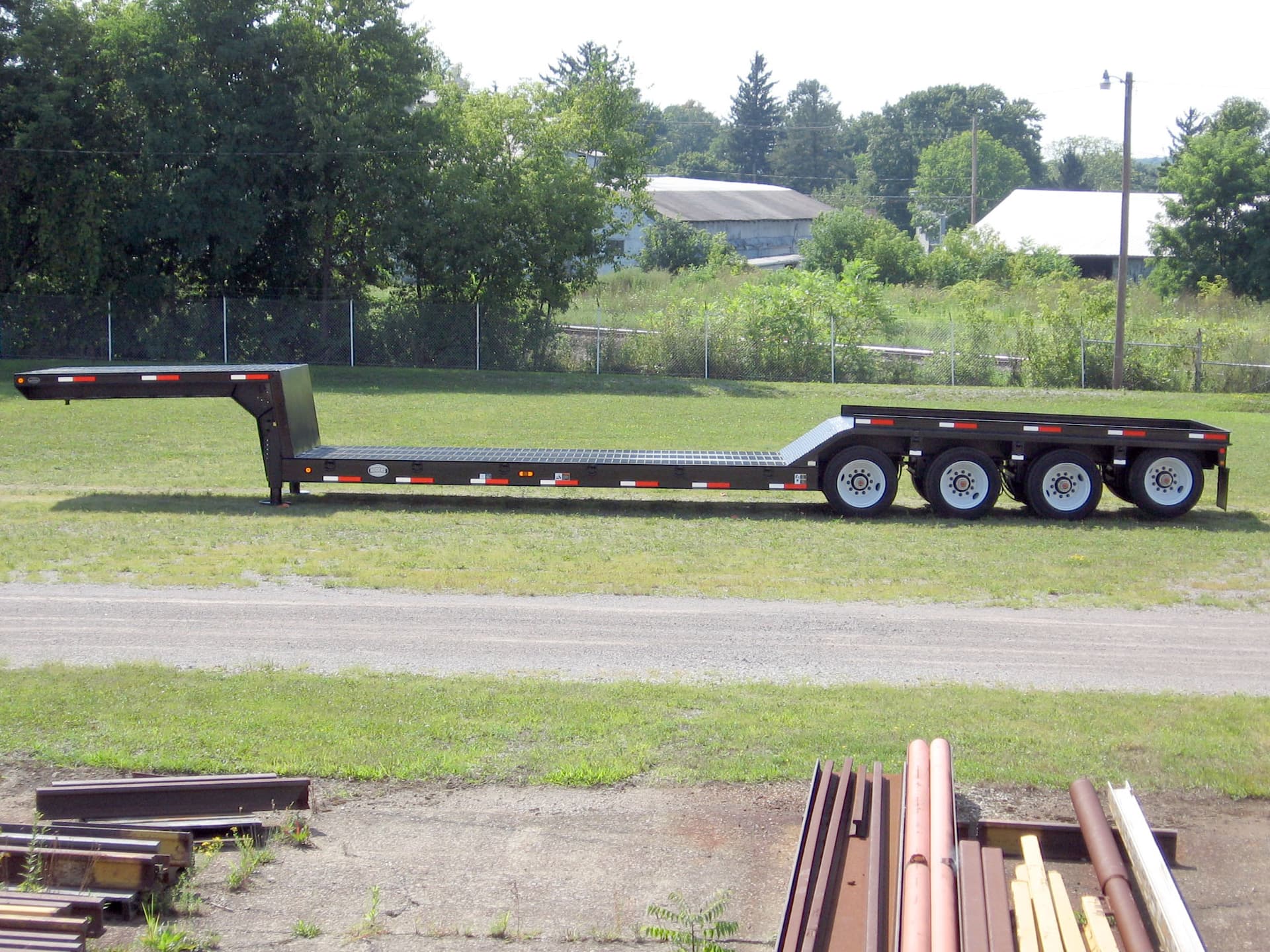

FG50D-4X 50-Ton Transformer Trailer
Fixed Gooseneck Trailers Series
Capacity
50 Ton
Axles
4-Axle
Deck Length20 ft
About This Trailer
This 50-ton capacity trailer is ready for its permanent load for a power utility customer
Full Specifications
Capacity
Capacity50.0-ton
Concentrated Load100,000-pounds
Concentrated Load Length10'-0"
Dimensions
Deck Length20'-0"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles4 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeSpecialized
Trailer UseElectric Transformer
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
