Rogers Brothers

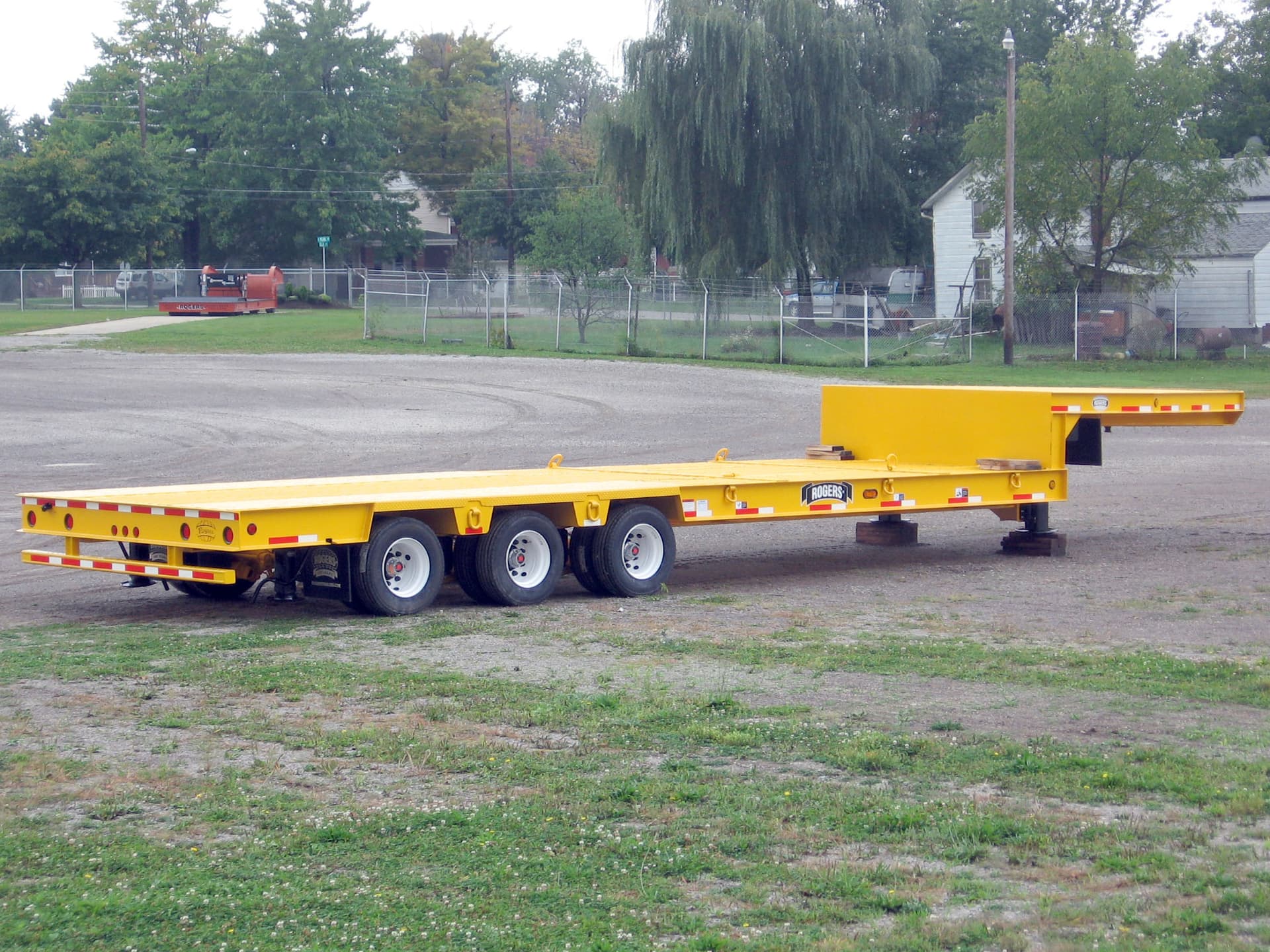

FG50L-3X 50-Ton Transformer Trailer
Fixed Gooseneck Trailers Series
Capacity
50 Ton
Axles
3-Axle
Deck Length16 ft
About This Trailer
A full-width fixed gooseneck with a level platform deck will be a 50-ton capacity transformer trailer.
Full Specifications
Capacity
Capacity50.0-ton
Concentrated Load100,000-pounds
Concentrated Load Length16'-0"
Dimensions
Deck Length16'-0"
Deck Width10'-0"
Deck StylePlatform
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires235/75R17.5(H) low-profile tubeless radial
Wheels17.5 x 6.75 8-hole steel disc
Brakes12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeSpecialized
Trailer UseElectric Transformer
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
