Rogers Brothers
FG65L-3X 65-Ton Coil Trailer
Custom Series Series
Capacity
65 Ton
Axles
3-Axle
Deck Length20 ft
About This Trailer

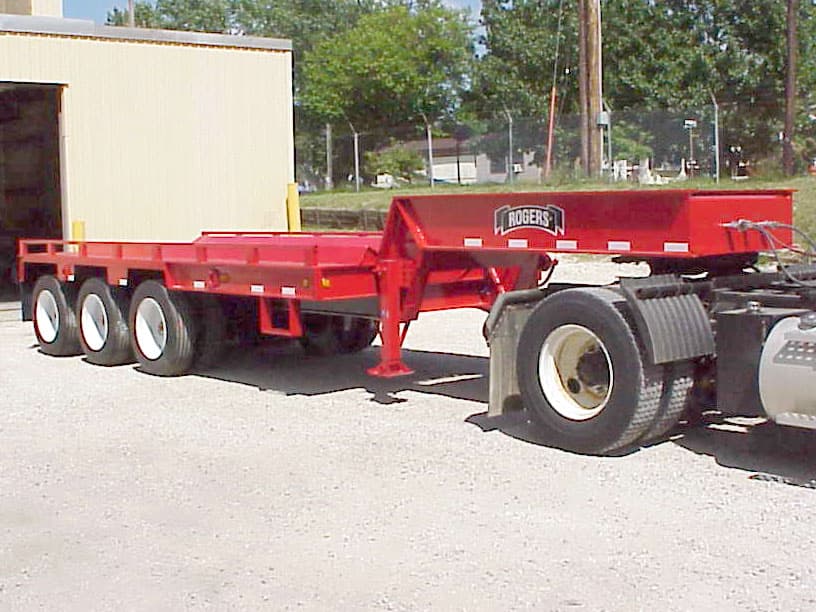

This 65-ton ROGERS fixed gooseneck trailer is designed to carry steel coils between processing areas of a steel mill. It has a 3-axle heavy-duty spring/walking beam suspension and large 275/70R H(16) tires.
Full Specifications
Capacity
Capacity65.0-ton
Concentrated Load130,000-pounds
Concentrated Load Length10'-0"
Dimensions
Deck Length20'-0"
Deck Width8'-6"
Deck StyleCustom
Running Gear
Axles3 axles
Axle Type30,000 lbs. capacity with oil-bathed bearings
Suspension90,000 lb. capacity tri-axle severe-duty spring walking beam
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeSpecialized
Trailer UseCoil Trailer
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
