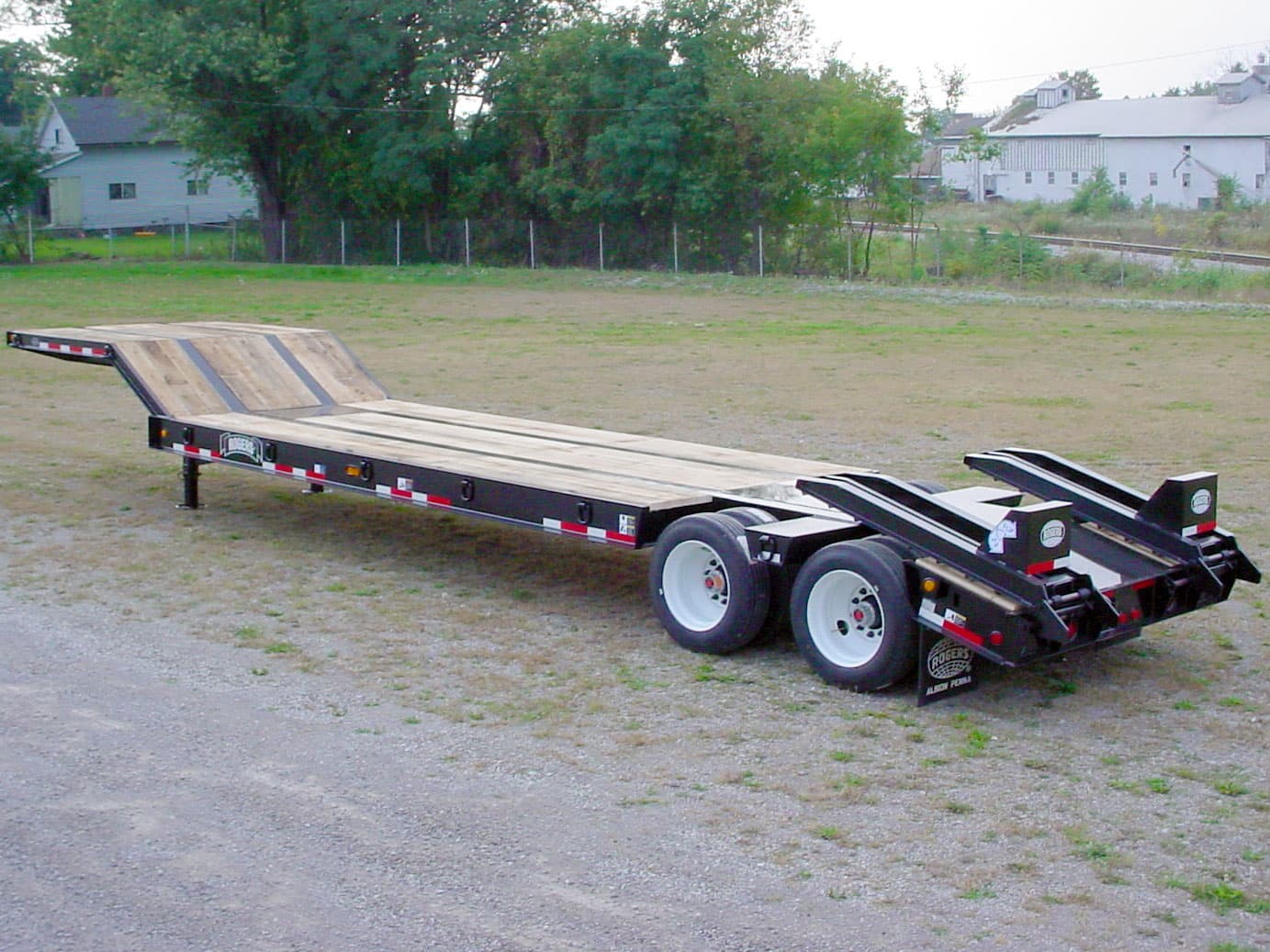

ROGERS MH35 trailer
Rogers Brothers

MH35 35-Ton Machinery Hauler

Fixed Gooseneck Trailers Series

Capacity

35 Ton

Deck Height

35"

Axles

2-Axle

Gooseneck

Fixed

Deck Length24 ft

About This Trailer

The ROGERS® MH35 is big enough to be versatile and small enough to maneuver. Plenty of ground clearance makes this 35-ton capacity trailer a good choice for oil field work. Standard features: Fixed, full width oak-covered gooseneck; Deck toolbox, lockable steel or oak lid; Pin type landing legs; Oak-covered 30º slope from deck to gooseneck; Full 2" air-dried oak decking; Total (16) bent lashing D's; Trunnions between wheels; Oak-covered 14º sloped beavertail; Center of rear frame 1/4" smooth cover plate; Oak-covered, dual spring-assisted "E–Z Flip" loading ramps, laterally adjustable; LED lights: US-DOT 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Flag holders; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length15'-0"
Dimensions
Deck Length24'-0"
Loaded Deck Height35"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type22,500 lbs. capacity with oil-bathed bearings
Suspension50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeMachinery Hauler
Trailer UseRear Loading: Fixed Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
