Rogers Brothers
SP100-4XDRR4 100-Ton Modular
Custom Series Series
Capacity
100 Ton
Axles
3-Axle
Deck Length30 ft

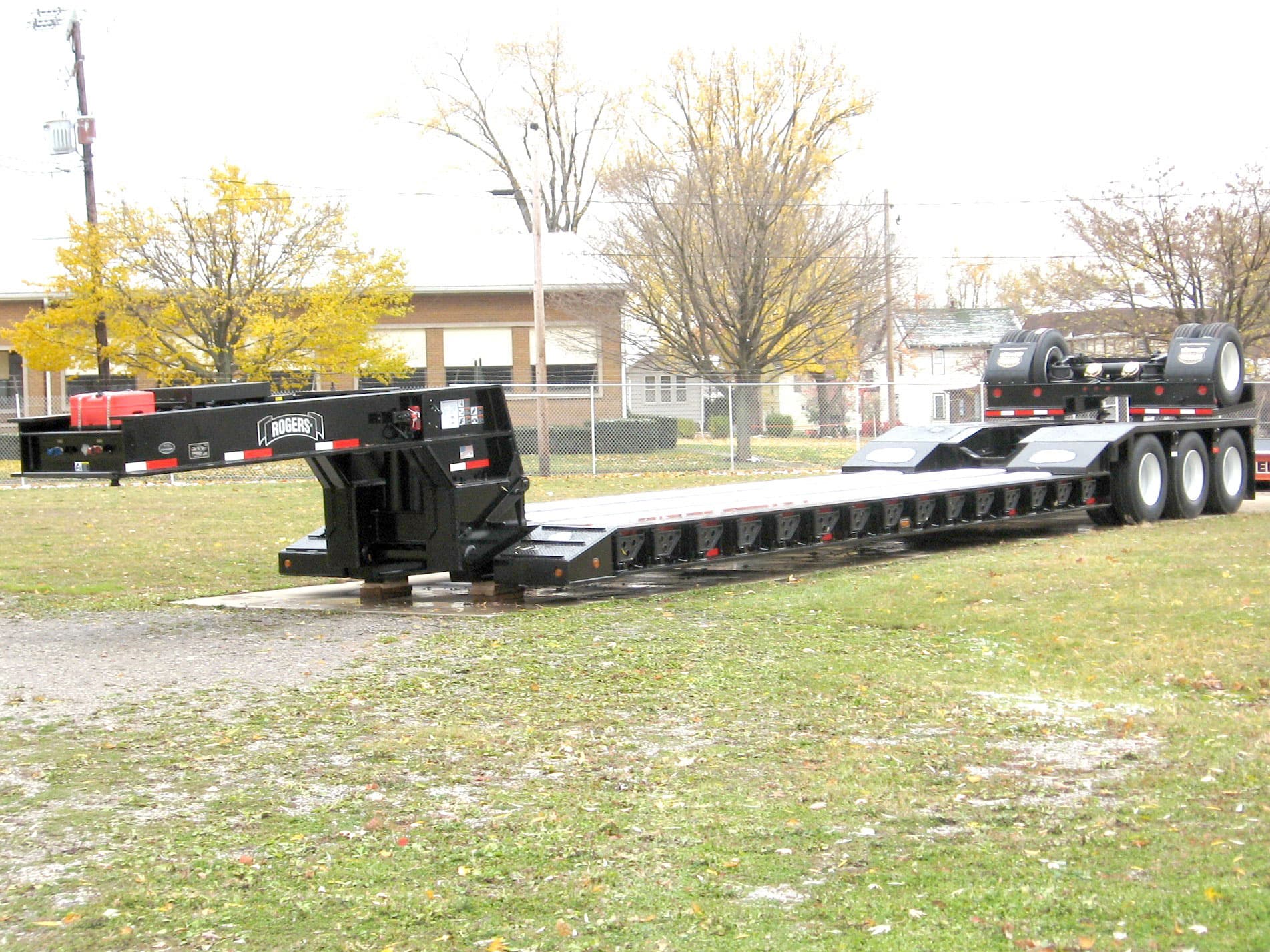

About This Trailer
This high performance 100-ton ROGERS trailer has a detachable ground-engaging ram foot gooseneck, a detachable rear frame, and a "flipped" removable 4th axle. The steel-covered front slope of the deck has grouser bars for traction. Removable steel bridge ramps aid in loading equipment over the rear frame.
Full Specifications
Capacity
Capacity100.0-ton
Concentrated Load200,000-pounds
Concentrated Load Length18'-0"
Dimensions
Deck Length30'-0"
Deck Width10'-0"
Deck StylePlatform
Running Gear
Axles3+1 axles
Axle Type30,000 lbs. capacity with oil-bathed bearings
Suspension90,000 lb. capacity tri-axle severe-duty spring walking beam
Tires315/80R22.5(L) low-profile tubeless radial
Wheels22.5 x 9.00 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Rear
Trailer UseModular
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
